Aten Dvi Usb Kvm Adapter Cable With Virtual Media & Smart Card Reader Support For Kn/ Km/ Kh Series
QUICK OVERVIEW

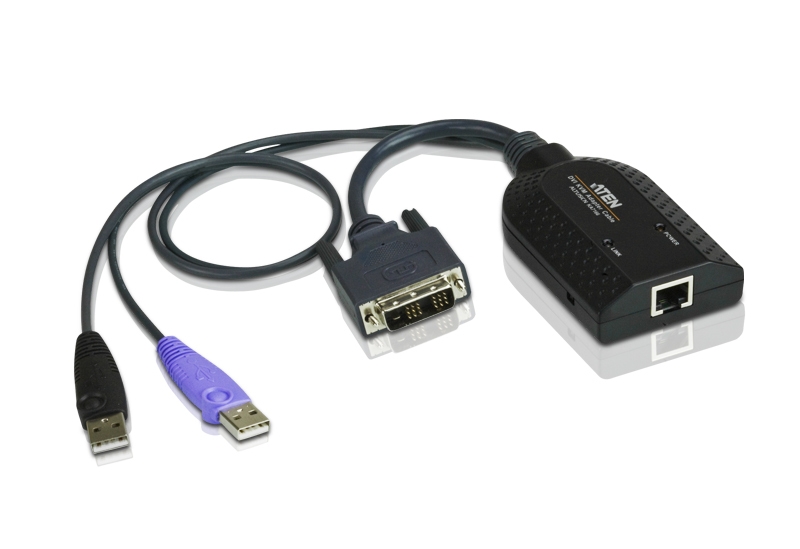

The KA7166 KVM Adapter Cable connects a KVM switch to the DVI-D video and USB ports of a target computer. The KA7166 supports DVI-D output and provides a USB plug to connect a target computer for Smart Card/CAC support *. With its small size and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew technologies for greatly enhanced video quality.
* Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
2 Years Extended Warranty
Extend your warranty to 5 years by purchasing an extra 2 years additional warranty. Click on the banner below.
Package Contents
- 1 x KA7166 KVM Adapter Cable
- uto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Built in ASIC for greater reliability and compatibility
- Compact size
- Virtual Media Support**
- Smart Card / CAC Reader Support**
* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.
** Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer | 2 x USB Type A Male 1 x DVI-D Male |
| LEDs | |
| Link | 1 (Green) |
| Power | 1 (Orange) |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.14 kg ( 0.31 lb ) |
| Dimensions (L x W x H) | 9.10 x 5.60 x 2.12 cm (3.58 x 2.2 x 0.83 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format |
