Aten Hdmi Usb Virtual Media Kvm Adapter With Digital Audio On Hdmi Signal For Km And Kn Series Ka7188-Ax

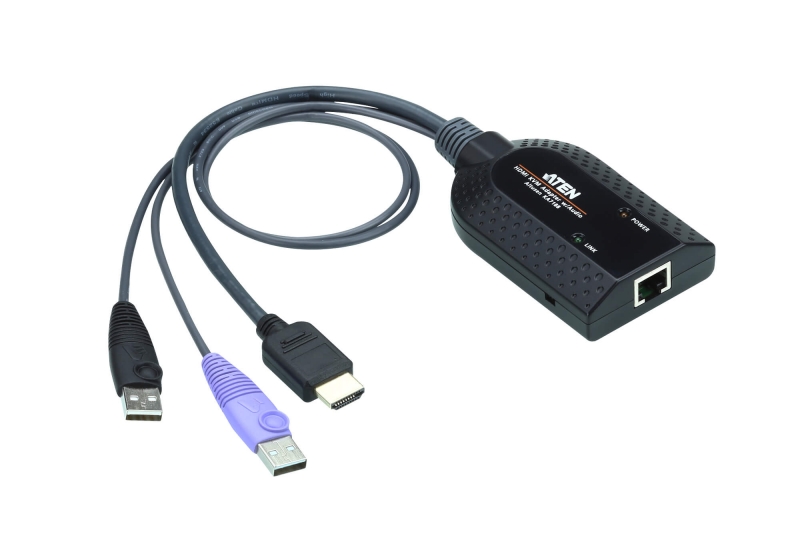

The KA7188 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer.* The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**
The KA7188 supports Audio De-Embedder, which extracts the audio from an
HDMI signal. More advanced features of KA7188 include the small size and
lightweight design, as well as superior signal compensation and delay
skew technologies for greatly enhanced video quality.
Note:
*Both USB connectors must be plugged into USB ports on the target
computer for the KA7188 to receive sufficient power.
**Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/)
for information about compatible KVM Switches.
- Connects a KVM switch to the HDMI video and USB ports of a target computer*
- Supports Audio De-Embedder
- Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
- Virtual Media Support**
- Smart Card / CAC Reader Support**
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)***
Built in ASIC for greater reliability and compatibility- Compact size
- Firmware upgradeable
| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer |
2 x USB Type A Male 1 x HDMI Male |
| LEDs | |
| Link | 1 (Green) |
| Power | 1 (Orange) |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.11 kg ( 0.24 lb ) |
| Dimensions (L x W x H) |
9.10 x 5.60 x 2.14 cm (3.58 x 2.2 x 0.84 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
