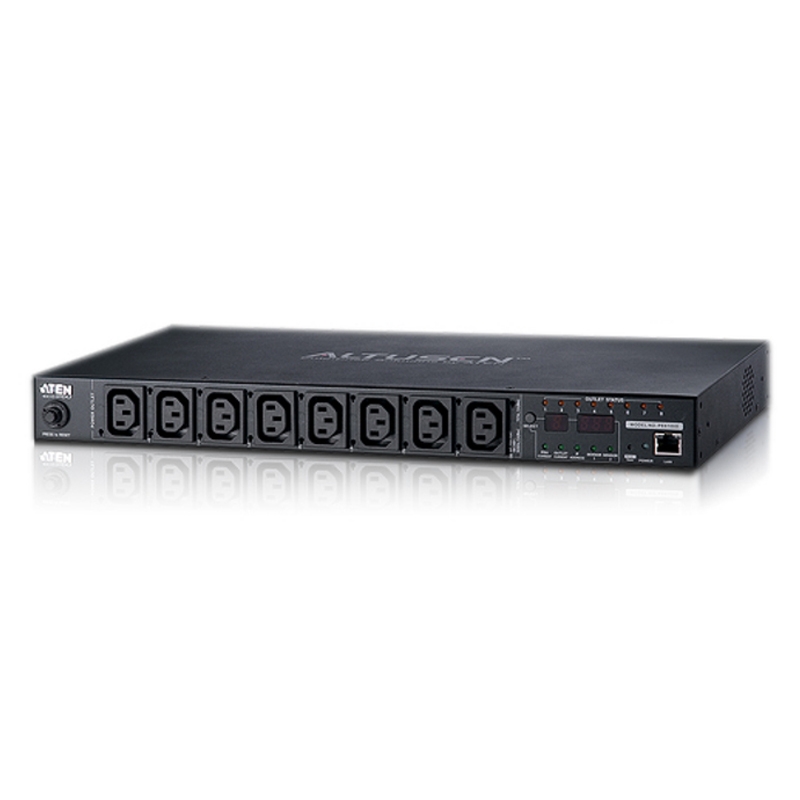

Aten Nrgence 8 Port 1u Eco Pdu Over Ip - 10a Input - Env Monitor Via Opt Sensors Pe6108
8 outlets
• 15A (UL derated 12A) / 10A
• PDU Power Measurement
The PE6108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.
The eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
Package Contents
- 1x PE6108 Power Distribution Unit
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Software CD
- 1x User Instructions
Power Distribution
Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access
Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
eco PDU Power Management software – eco Sensors
Supports SNMP Manager V3
Operation
Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices
Management
Power status measurement at the PDU level
LED indicators for current and IP address at the PDU device level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security
Two-level password security
Strong security features include password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS
eco Sensors Energy Management Software
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report
Function PE6108A PE6108B PE6108G
Electrical
Nominal Input Voltage 100 – 120 VAC 100 – 240 VAC 100 – 240 VAC
Maximum Input Current 15A Max; 12A(UL de-rated) 15A Max; 12A(UL de-rated) 10A Max
Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Input Connection NEMA 5-15P NEMA 6-15P IEC 60320 C14
Input Power 1800 VA(Max); 1440 VA(UL de-rated) 3120 VA(Max); 2496 VA(UL de-rated) 2300 VA(Max)
Outlet Type Total: 8 x NEMA 5-15R Total: 8 x IEC320 C13 Total: 8 x IEC320 C13
Nominal Output Voltage 100 – 120 VAC 100 – 240 VAC 100 – 240 VAC
Maximum Output Current (Outlet) NEMA 5-15R: 15A(Max); 12A(UL de-rated) C13: 15A(Max); 12A(UL de-rated) C13: 10A(Max)
Maximum Output Current (Bank) 15A(Max); 12A(UL de-rated) 15A(Max); 12A(UL de-rated) 10A(Max)
Maximum Output Current (Total) 15A(Max); 12A(UL de-rated) 15A(Max); 12A(UL de-rated) 10A(Max)
Breakers 1 x 15A Non-Fuse Breaker 1 x 15A Non-Fuse Breaker 1 x 15A Non-Fuse Breaker
Metering Bank level Current, Voltage, VA , PF and KWh Monitoring Bank level Current, Voltage, VA , PF and KWh Monitoring Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switching Yes Yes Yes
Environment Sensor Ports 2 2 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.) 43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.) 43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)
Weight 2.77 kg ( 6.1 lb ) 2.77 kg ( 6.1 lb ) 2.77 kg ( 6.1 lb )
Power Cord Length 3 m 3 m 3 m
Environmental
Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C 0 – 50°C / -20 – 60°C 0 – 50°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Compliance
EMC Verification FCC, Others by Request FCC, Others by Request CE, Others by Request
Safety Verification TUV-CB, cTUVus, Others by Request TUV-CB, cTUVus, Others by Request TUV-CB, CE-LVD, Others by Request
