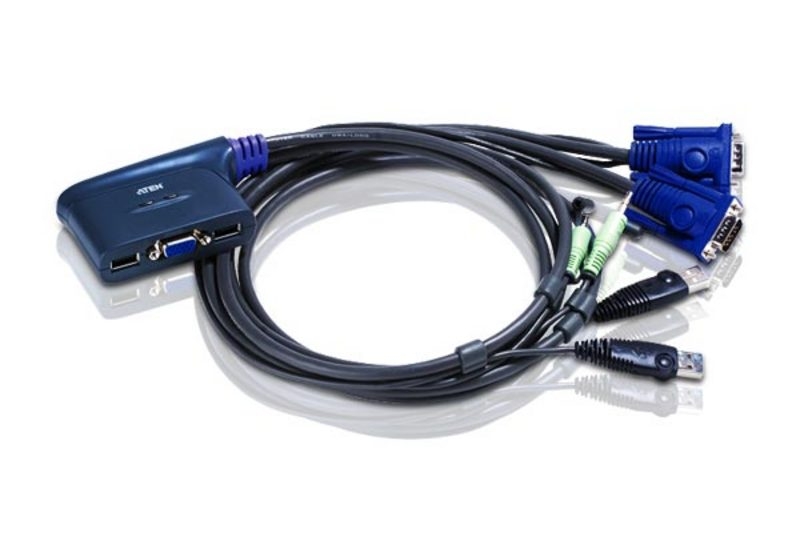

Aten Petite 2 Port Usb Vga Kvm Switch With Audio - 0.9M Cables Built In Cs62Us-At

Name: Aten Petite 2 Port Usb Vga Kvm Switch With Audio - 0.9M Cables Built In Cs62Us-At
Brand: Aten
SKU: 271932
Price: 58 AUD
Availability: InStock

3.4

(3 reviews)

SKU

271932

Brand

Aten

Manufacturer Link

MPN

CS62US-AT

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

Preorder (Contact Us)

Freight Estimate

$58.00

Buy Now And Earn 58 Reward Points!

OVERVIEW

Superior video quality – up to 2048 x 1536; DDC2B
Computer Selection via hotkey and USB mouse
Multiplatform support - Windows, Linux, Mac, Sun
Built-in 0.9 m cables and bus-powered design

Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.

Package Contents

1x 2-Port USB KVM Switch with Attached Cables
1x User Instructions

One USB console controls two USB computers
Compact design, built-in 0.9 m cables
Hotkey selection for OS and keyboard language
Computer Selection via hotkey and USB mouse NEW!
Multiplatform support - Windows, Linux, Mac, Sun
Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse driver NEW!
USB mouse port can be used for USB hub and USB peripheral sharing*
Supports gaming keyboards NEW!
Supports multifunction and wireless keyboards and mice NEW!
All-in-one design
With speaker support
Superior video quality – up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
Sun/Mac keyboard support and emulation*

* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

Specifications

Computer Connections	2
Port Selection	Hotkey, Mouse
Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
KVM Ports	2 x HDB-15 Male (Blue) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green)
LEDs
Selected	2 (Green)
Cable Length
Computer	2 x 0.9 m
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536, DDC2B
Scan Interval	5 seconds
Power Consumption
Power Consumption	TBD
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.28 kg ( 0.62 lb )
Dimensions (L x W x H)	8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
