Aten Rackmount Usb-ps/ 2 Vga Single Rail Slideaway 19" Lcd Kvm Console Cl1000n
SKU
268686
Brand
MPN
CL1000N-ATA-AU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,024.00
Buy Now And Earn 1024 Reward Points!

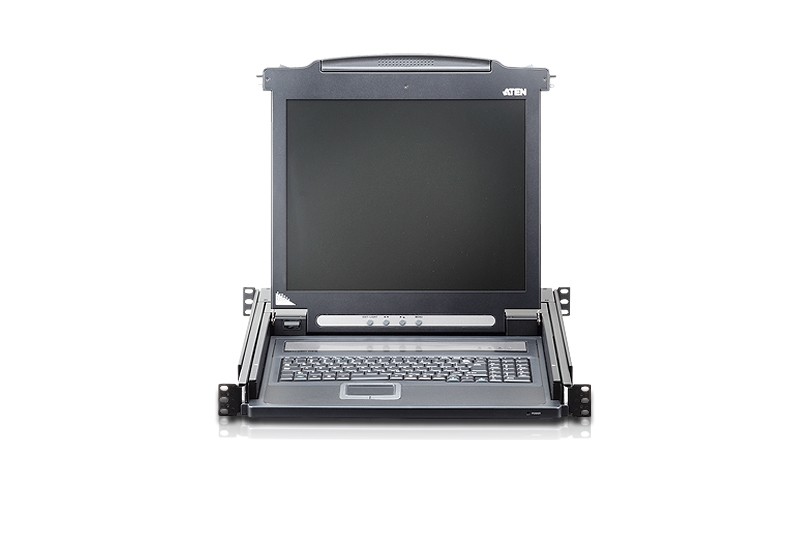

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
CL1000M: 17" LCD
CL1000N: 19" LCD
Package Contents
- 1x CL1000M or CL1000N with Standard Rack Mount Kit
- 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Power Cord
- 1x User Instructions
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
- Compatible with most PS/2 KVM Switches
- Internal power supply
- Adjustable depth to fit within a rack
- High video resolution:
• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor - Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
- Improved design – optional single person installation kit
Note: Custom KVM cables or converters are available for USB support
* Compatible rack mounting kit:
CL1000M: 2X-010G, 2X-011G, 2X-012G
CL1000N: 2X-023G, 2X-024G, 2X-025G
Specifications:
| Connectors | Console Ports | Keyboard/Video/Mouse | 1 x SPHD-15 Female (Yellow) |
| Power | 1 x 3-prong AC Socket | ||
| Switches | LCD Adjustment | 4 x Pushbuttons | |
| LCD Power | 1 x Pushbuttons | ||
| LEDs | CPU | 1 (Green) | |
| Num Lock | 1 (Green) | ||
| Caps Lock | 1 (Green) | ||
| Scroll Lock | 1 (Green) | ||
| Emulation | Keyboard/Mouse | PS/2, USB (with 2L-52xxUP USB KVM cable) | |
| Video | 1280 x 1024 @ 75 Hz ; DDC2B | ||
| I/P Rating | 100-240 VAC; 50/60 Hz; 1A | ||
| Power Consumption | 120 V, 21 W; 230 V, 24 W | ||
| Environment | Operating Temp. | 0 - 50˚C | |
| Storage Temp. | -20 - 60˚C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal + Plastic | |
| Weight | 12.30 kg | ||
| Dimensions ( L x W x H ) | 58.50 x 48.30 x 4.40 cm | ||
