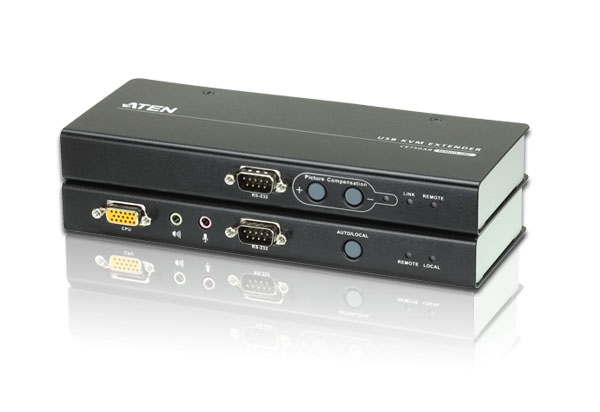

Aten Kvm Extender Kit VGA/Audio Cat 5 Extender W/ Local Access, 1920x1200@60Hz 30m, 1600x1200@60Hz 150m, 1280x1024@60Hz 200m CE750A-AT-U

Name: Aten Kvm Extender Kit VGA/Audio Cat 5 Extender W/ Local Access, 1920x1200@60Hz 30m, 1600x1200@60Hz 150m, 1280x1024@60Hz 200m CE750A-AT-U
Brand: Aten
SKU: 271939
Price: 744 AUD
Availability: PreOrder

SKU

271939

Brand

Aten

Manufacturer Link

MPN

CE750A-AT-U

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

Preorder (Contact Us)

Freight Estimate

$744.00

Buy Now And Earn 744 Reward Points!

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse). Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - for example away from the dust and dirt of the factory floor or the harsh environment of a construction site. The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

Function CE750AL CE750AR
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-15 Female (Yellow)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Remote 1 (Green) 1 (Green)
Link N/A 1 (Green)
Local 1 (Green) N/A
Picture Compensation N/A 1 (Orange)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Picture Compensation N/A 2 x Pushbuttons
Emulation
Keyboard / Mouse USB USB
Video 1920x1200@60Hz at 30m;
1600x1200@60Hz at 150m;
1280x1024@60Hz at 200m 1920x1200@60Hz at 30m;
1600x1200@60Hz at 150m;
1280x1024@60Hz at 200m
Power Consumption DC5.3V:2.44W:16BTU DC5.3V:3.27W:20BTU
Environmental
Operating Temperature 0-50˚C 0-50˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.47 kg ( 1.04 lb ) 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) 20.20 x 8.63 x 2.50 cm
(7.95 x 3.4 x 0.98 in.) 20.20 x 8.51 x 2.50 cm
(7.95 x 3.35 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
