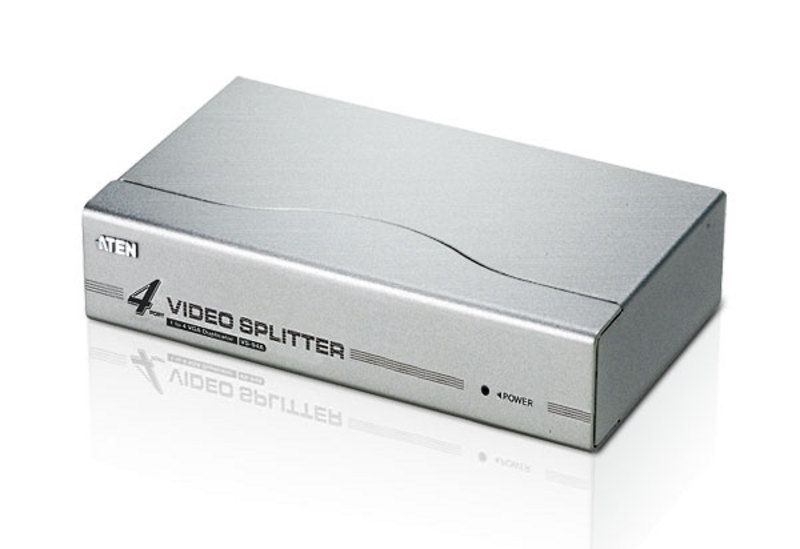

Aten Vancryst 4 Port Vga Video Splitter - 1920x1440@60hz Max Vs94a
SKU
268700
Brand
MPN
VS94A-AT-U
Warranty
Standard Manufacturer's Warranty
$64.00
Buy Now And Earn 64 Reward Points!
The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Package Contents
- 1x 4-Port Video Splitter
- 1x Power Adapter
- 1x User Instructions
- One video input to 4 video outputs
- Cascadable to 3 levels - provides up to 64 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m *
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video | |
| Max. Bandwidth | 350 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC9V:3.28W:15BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
