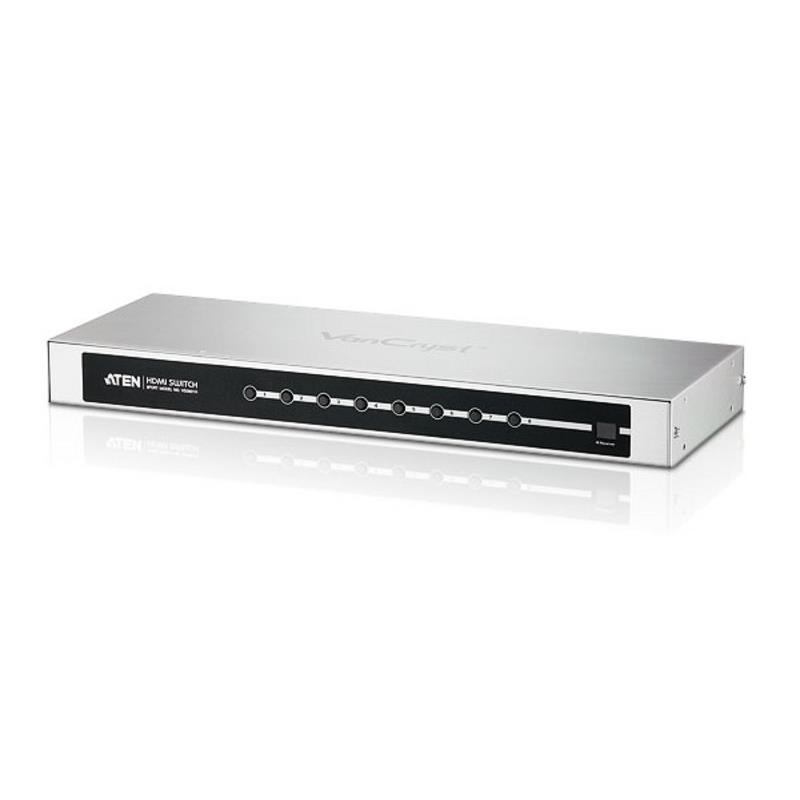

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display. The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p
Max. Distance Up to 15 m
Audio
Input 8 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:3.73W:17BTU
Physical Properties
Housing Metal
Weight 1.75 kg ( 3.85 lb )
Dimensions (L x W x H) 43.70 x 15.98 x 4.40 cm
(17.2 x 6.29 x 1.73 in.)
