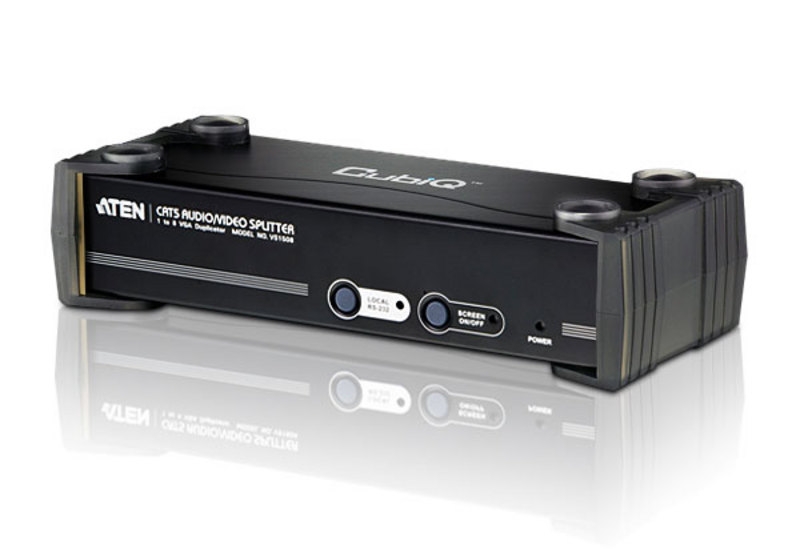

The VS1508 Cat 5 Audio/Video Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1508 A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 500 m away from the source.
* Suggested Compatible Receiver Units:
VB552 VGA Over Cat 5 Repeater + Audio
VE200R Audio/Video Receiver

Cascadable to three levels, the VS1508 can support thousands of displays when combined in an installation with ATEN repeaters or extenders. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation.
The solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities



•  One video input to 8 video outputs
•  Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
•  Audio and serial enabled
•  Uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices
•  High quality video - supports 1920 x 1200 @ 60Hz
•  Group screens off/on function
•  Provide a RS-232 channel for selection**
