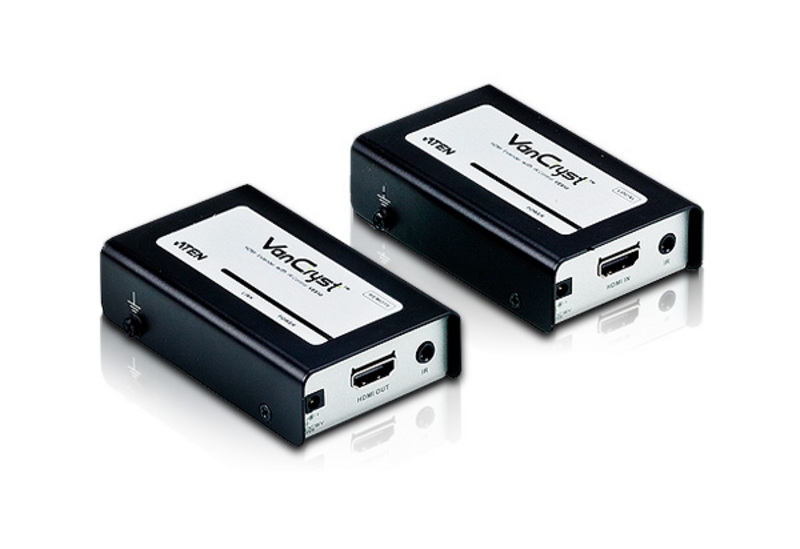

Aten Vancryst Hdmi Over Cat5 Video Extender With Audio & Ir Control - 1920x1200@60hz Or 60m Max
SKU
268706
Brand
MPN
VE810-AT-U
Warranty
1 Year Manufacturer's return to base
Special Price $128.00 Regular Price $130.00
Buy Now And Earn 128 Reward Points!
QUICK OVERVIEW
VE810
The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
Package Contents
- 1x VE810L (Local Unit) HDMI Extender
- 1x VE810R (Remote Unit) HDMI Extender
- 1x Power Adapter (Local Unit)
- 1x Mounting Kit
- 1x User Instructions
- 1x IR Receiver
- 1x IR Transmitter
- Connects the local and the remote units via Cat 5e cables
- HDMI (3D, Deep Color); HDCP 1.1 compliant
- Superior video quality – up 1920 x 1080 at distance up to 40 m
- Bi- directional IR channel for IR signal control on remote unit; IR transmission is processed one direction at a time
- 8 segment equalization adjustment switch optimizes display quality
- Supports Dolby True HD and DTS HD Master Audio
- DDC compatible
- Compatible with all ATEN HDMI switches and splitters
- Non-Powered (only require one power adapter)
- Rack-mountable
| Function | VE810L | VE810R |
| Video Input | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 Ώ | N/A |
| Max. Distance | 1.8 m | N/A |
| Video Output | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ώ |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP 1.4 Compatible | HDMI (3D, Deep Color) HDCP 1.4 Compatible |
| Max. Resolutions / Distance | Up to 1080p@40m; 1080i@60m | Up to 1080p@40m; 1080i@60m |
| Audio | ||
| Input | 1 x HDMI Type A Female (Black) | N/A |
| Output | N/A | 1 x HDMI Type A Female (Black) |
| Control | ||
| IR | 1 x Mini Stereo Jack Female (Black) | 1 x Mini Stereo Jack Female (Black) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Power Consumption | DC5V:2.41W:11 | DC5V:1.06W:5 |
