Aten Vancryst Vga Over Cat5 Video Extender - 1900X1200@60Hz Or 150M Max Ve150A-At-U
SKU
271948
Brand
MPN
VE150A-AT-U
Warranty
Standard Manufacturer's Warranty
$154.00
Buy Now And Earn 154 Reward Points!

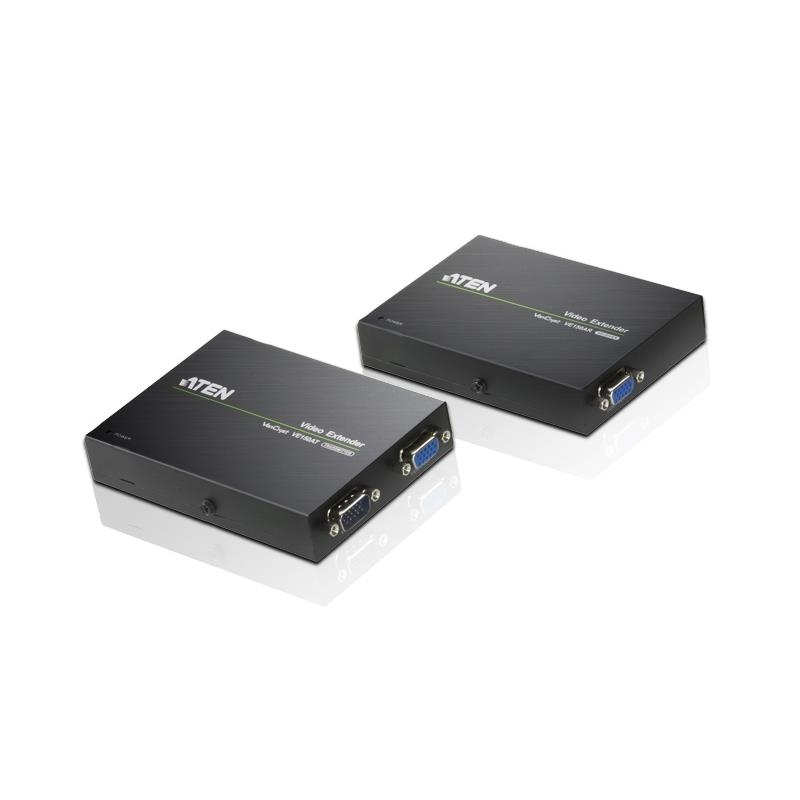

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
Package Contents
- 1x VE150AT Video Extender (Local unit)
- 1x VE150AR Video Extender (Remote unit)
- 2x Power Adapters
- 1x VGA Cable (1.8m/6ft)
- 1x Mounting Kit
- 1x User Instructions
- Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission – up to 150 m
- Adjustable gain control – manually adjust signal strength to compensate for distance
- Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Supports DDC for the local monitor
- Easy installation
- Rack Mountable
- Plug-and-play – no software installation required
| Function | VE150AR | VE150AT |
| Video Input | ||
| Interfaces | N/A | 1 x HDB-15 Male (Blue) |
| Impedance | N/A | 75 Ώ |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDB-15 Female (Blue) | N/A |
| Impedance | 75 Ώ | N/A |
| Video | ||
| Max. Bandwidth | 300 MHz | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@30m; 1280 x 1024@150m | Up to 1920 x 1200@30m; 1280 x 1024@150m |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Power Consumption | BTU | DC5.3V:0.87W:8BTU |
| Environmental | ||
| Operating Temperature | 0 - 50°C | 0 - 50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
