Aten Vs-162 2 Port Dvi Video Splitter 1600x1200 @ 60hz
SKU
12310
Brand
MPN
VS162-AT-U
Warranty
Standard Manufacturer's Warranty
$119.00
Buy Now And Earn 119 Reward Points!
OVERVIEW

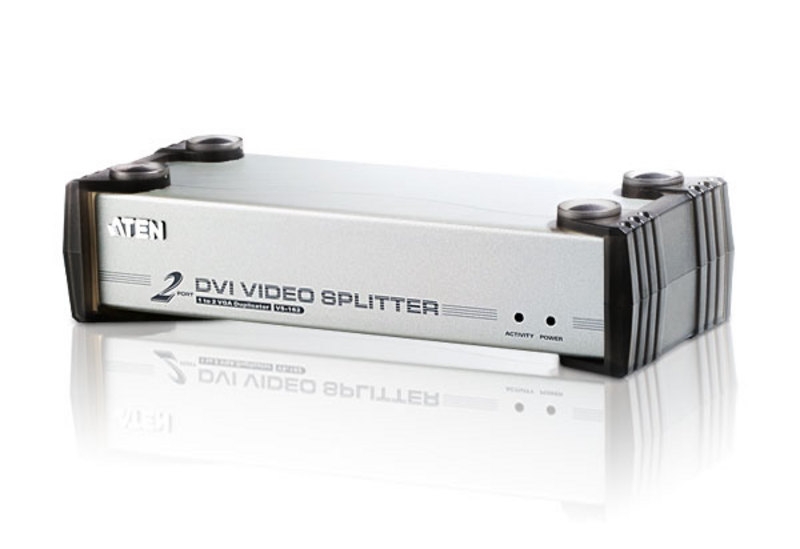

Aten VS-162 – 2-Port DVI Video Splitter
VS162 KVM Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 8 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Specifications
| Computer Connections | 2 | |
| Connectors | Video In | 1 x DVI port (Female) |
| Audio In | 1 x Audio jack | |
| Video Out | 2 x DVI ports (Female) | |
| Audio Out | 2 x Audio jacks | |
| Power | 1 x DC 5.3V jack | |
| LEDs | Link | 1 |
| Power | 1 | |
| Resolution | Up to 1920 x 1200; DDC2B | |
| Power Consumption | DC5.3V, 2.4W | |
| Signal Range | 5 m (15 ft) | |
| Environment | Operating Temp. | 0-50°C |
| Storage Temp. | -20-60˚°C | |
| Humidity | 0-80% RH, Non-condensing | |
|
Physical Properties |
Housing | Metal |
| Weight | 0.62 kg | |
| Dimensions ( L x W x H ) | 21.00 x 8.80 x 5.55 cm | |
Package Contents
- 1 x 2-Port DVI Video Splitter
- 1 x Power Adapter
- 1 x User Instructions
Vendor Info
Details:
Aten VS-162 – 2-Port DVI Video Splitter
VS162 KVM Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Specifications:
| Computer Connections | 2 | |
| Connectors | Video In | 1 x DVI port (Female) |
| Audio In | 1 x Audio jack | |
| Video Out | 2 x DVI ports (Female) | |
| Audio Out | 2 x Audio jacks | |
| Power | 1 x DC 5.3V jack | |
| LEDs | Link | 1 |
| Power | 1 | |
| Resolution | Up to 1920 x 1200; DDC2B | |
| Power Consumption | DC5.3V, 2.4W | |
| Signal Range | 5 m (15 ft) | |
| Environment | Operating Temp. | 0-50°C |
| Storage Temp. | -20-60?°C | |
| Humidity | 0-80% RH, Non-condensing | |
| Physical Properties | Housing | Metal |
| Weight | 0.62 kg | |
| Dimensions ( L x W x H ) | 21.00 x 8.80 x 5.55 cm | |
Package Contents
- 1 x 2-Port DVI Video Splitter
- 1 x Power Adapter
- 1 x User Instructions
