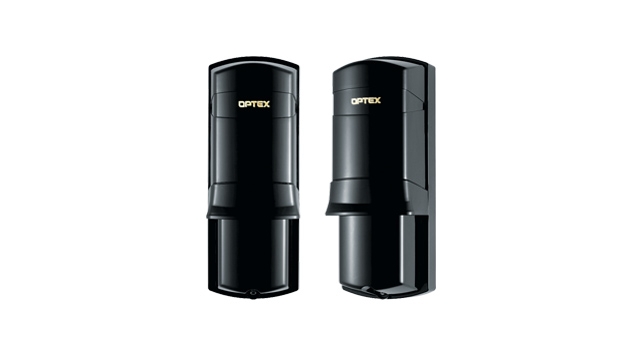

OPTEX S3600A AX-100TF DUAL 30M MULTI-FREQ OUTDOOR-5YRS
The AX-100TF Series of short range photoelectric detectors are compact in design with selectable beam frequencies which can be used to avoid unwanted crosstalk that can occur when using multiple photobeams over long distances or for beam stacking applications. Also the AX-100TF/200TF Series carries the IP65 high durable structure, which prevents water, dust or bugs from getting into the unit. The ideal optical pitch design reduces false alarms due to accidental beam interruption by falling leaves, birds, and so on. These features deliver performance with higher reliability in severe outdoor environmental condition.
Features:
- Selectable 4 channel beam frequencies
- 4 step LED indicator
- Environmental disqualification circuit
- IP65 structure
- Lightning and surge protection
- Lightning and surge protection
- Anti-frost hood cover
- 99% beam blocking stability
- A.G.C. circuit
- Adjustable beam interruption time
| Maximum detection range | 30 ｍ |
| Maximum arrival range | 300 ｍ |
| Selectable beam frequencies | 4 channel |
| Interruption period | Selectable between 50, 100, 250, and 500 msec. |
| Power supply | 10.5 - 28VDC |
| Current consumption (transmitter + receiver) | 44 mA (max.) |
| Alarm period | 2 sec. (±1) nominal |
| Alarm output | N.C./N.O. 28 VDC 0.2 A max. |
| Tamper switch | N.C. opens when cover is removed at 28 VDC, 0.2 A max. |
| Operating temperature | -35°C to +60°C |
| Environmental humidity | 95% max. |
| Alignment angle | ±90° Horizontal, ±5° Vertical |
| Mounting | Wall and pole mounting |
| Weight (transmitter+receiver) | 700 g |
| Dimensions (H x W x D) | 170 mm x 65 mm x 69.5 mm |
| Weatherproof | IP65 |
