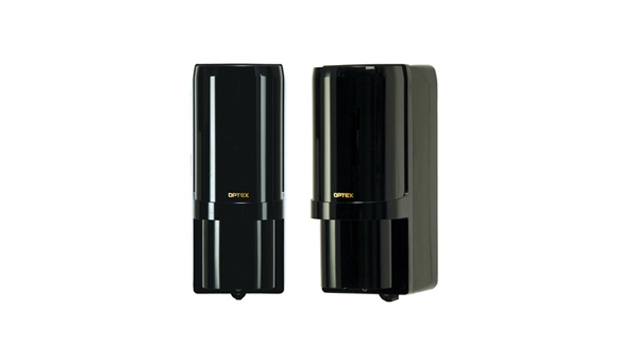

OPTEX S3593A AX-200TFR DUAL 60M MULTI-FREQ BATT PWR OUTDOOR-5YRS
SKU
403098
Brand
Warranty
Standard Manufacturer's Warranty
$549.00
Buy Now And Earn 549 Reward Points!
The AX-200-TFR series is a "REVOLUTION" in the perimeter security industry, offering a significant cost saving alternative to a traditional hardwired system.
Features:
- Long battery life (Approximately 3 Years)
- Easy battery replacement
- Triple tamper functions
- Low battery output and LED indication
- Intermittent output function
- Compatible with numerous wireless transmitters
- Battery saving timer function for wireless transmitters
- Selectable 4 channel beam frequencies
- 4 step LED indicator
- Environmental disqualification circuit
- IP65 structure
| Maximum detection range | 60 ｍ |
| Maximum arrival range | 600ｍ |
| Selectable beam frequencies | 4 channel |
| Interruption period | Selectable between 50, 100, 250, and 500 msec. |
| Power supply | 3.6 V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not included) Transmitter: 2 units Receiver: 2 units |
| Current consumption (transmitter + receiver) | 810 µA T : 490 µA + R : 320 µA (at 25°C, 3.6 VDC) |
| Battery life (Transmitter & Receiver) | Approximately 3 Years & 5 Years |
| Alarm output | Form C-Solid State Switch: 3.6 VDC, 0.01 A |
| Alarm period | 2 sec. (±1) nominal |
| D Q output | Form A/B-Solid State Switch : 3.6 VDC, 0.01 A |
| Low battery output | Form A/B-Solid State Switch : 3.6 VDC, 0.01 A (Transmitter & Receiver) |
| Tamper output for Front cover | Form C : 3.6 VDC, 0.01 A activates when cover removed. (Receiver only) |
| Alarm Indicator(Receiver) | (1) Light on - IR Beam not received. (2) Flickering Light - IR Beams not received sufficiently. (3) Light off - IR Beams received. |
| Power (Transmitter) | Power ON : ON, Power OFF : OFF |
| Low battery | Voltage Reduction: flicker |
| Tamper output for Back box | Form C : 3.6 VDC, 0.01 A activates when either back box or chassis is removed from the installment. |
| Operating temperature | -20°C – +60°C (-4°F – +140°F) |
| Environmental humidity | 95% max. |
| Alignment angle | ±90° Horizontal, ±5° Vertical |
| Mounting | Indoor/Outdoor, Wall/Pole/Tower mounting (Optional main unit mounting brackets are required, when the units mount in the tower.) |
| Weight (transmitter+receiver) | 1,600 g (Total weight of transmitter + receiver, excluding accessories) |
| International protection | IP55 |
