OPTEX AX-70TN DUAL 20M OUTDOOR-5YRS

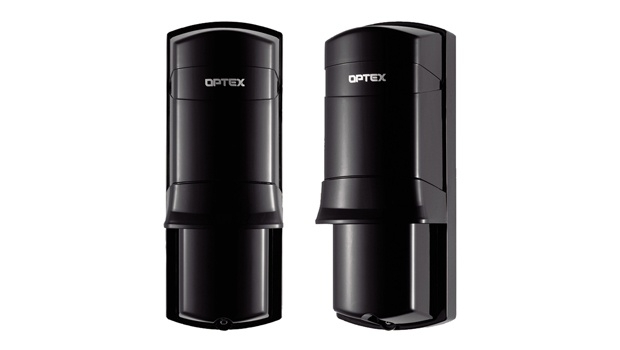

The AX-70TN Series of short range photoelectric detectors are compact in design with IP65 high durable structure. Rubber packing is used for all conceivable points where water, dust or bugs may penetrate, such as wiring holes, wire ports and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental condition. In addition, the length between the upper and lower optics, and the width of the optics are ideally engineered to produce the most intelligent detection pattern which reduces false alarms by detecting human intruders only.
Features
- IP65 structure
- Lightning and surge protection
- Anti-frost hood cover
- 99% beam blocking stability
- A.G.C. circuit
- Adjustable beam interruption time
| Maximum detection range | 20 ｍ |
| Maximum arrival range | 200 ｍ |
| Interruption period | Selectable between 50, 100, 250, and 500 msec. |
| Power supply | 10.5 - 28VDC |
| Current consumption (transmitter + receiver) | 38 mA (max.) |
| Alarm period | 2 sec. (±1) nominal |
| Alarm output | N.C. 28 VDC 0.2 A max |
| Tamper switch | N.C. opens when cover is removed at 28 VDC, 0.2 A max. |
| Operating temperature | -35°C to +60°C |
| Environmental humidity | 95% max. |
| Alignment angle | ±90° Horizontal, ±5° Vertical |
| Mounting | Wall and pole mounting |
| Weight (transmitter+receiver) | 650 g |
| Dimensions (H x W x D) | 170 mm x 65 mm x 69.5 mm |
| Weatherproof | IP65 |
