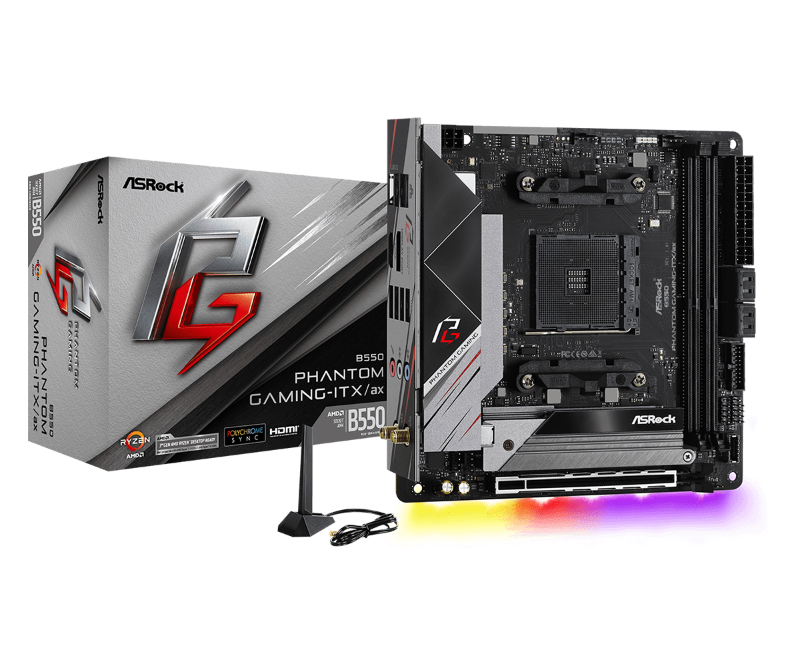

Asrock B550 PHANTOM GAMING-ITX/AX Motherboard
SKU
308032
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
Audio
| Audio Channels | 7.1 |
Video
| Onboard Video | CPU Dependent Video |
I/O Expansions
| Number of Total Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
Physical Characteristics
| Form Factor | Mini ITX |
| Width | 170.2 mm |
| Depth | 170.2 mm |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ax |
| 2.5Gigabit Ethernet | Yes |
Memory
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 4800 MHz (O.C.) |
| 4866 MHz (O.C.) | |
| 4933 MHz (O.C.) | |
| 5000 MHz (O.C.) | |
| 5100 MHz (O.C.) | |
| 5200 MHz (O.C.) | |
| 5300 MHz (O.C.) | |
| 5400 MHz (O.C.) | |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 3466 MHz (O.C.) | |
| 3600 MHz (O.C.) | |
| 3733 MHz (O.C.) | |
| 3800 MHz (O.C.) | |
| 3866 MHz (O.C.) | |
| 4000 MHz (O.C.) | |
| 4133 MHz (O.C.) | |
| 4200 MHz (O.C.) | |
| 4266 MHz (O.C.) | |
| 4333 MHz (O.C.) | |
| 4400 MHz (O.C.) | |
| 4466 MHz (O.C.) | |
| 4533 MHz (O.C.) | |
| 4600 MHz (O.C.) | |
| 4666 MHz (O.C.) | |
| 4733 MHz (O.C.) |
I/O Controller
| RAID Levels | 10 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Interfaces/Ports
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Ports | 6 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
