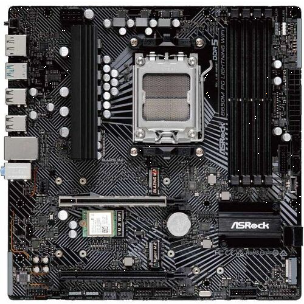

ASRock B650M PG LIGHTNING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI B65
SKU
407840
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
ASRock B650M PG LIGHTNING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
ASRock B650M PG Riptide WIFI MATX AM5 6+2+1 4 DIMMs 4 SATA3 1 USB 3.2 Gen1 Type C front WiFi6E 3 x ARGB DDR5
Features
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- Supported 0 RAID levels provide data reliability and fault tolerance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
- DDR5 SDRAM slot for convenient installation of memory
- With 4 USB 2.0 ports, connect devices for a quick data movement
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
Guides & Documents
Audio
| Audio Channels | 7.1 |
Video
| Onboard Video | CPU Dependent Video |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Certification | ErP/EuP Ready |
| Brand Compatibility | AMD |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 243.8 mm |
| Depth | 243.8 mm |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
I/O Controller
| RAID Levels | 1 |
| 10 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
I/O Expansions
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 2 |
General Information
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | B650MPGLIGHTNINGWIFI |
| Manufacturer Website Address | http://www.asrock.com |
| Manufacturer | ASRock, Inc |
| Product Model | B650M PG LIGHTNING WIFI |
| Product Name | B650M PG LIGHTNING WIFI Gaming Desktop Motherboard |
| Brand Name | ASRock |
Memory
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 6000 MHz |
Network & Communication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
Processor & Chipset
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Multi GPU Supported | CrossFire |
Interfaces/Ports
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of Thunderbolt 4 Ports | 1 |
