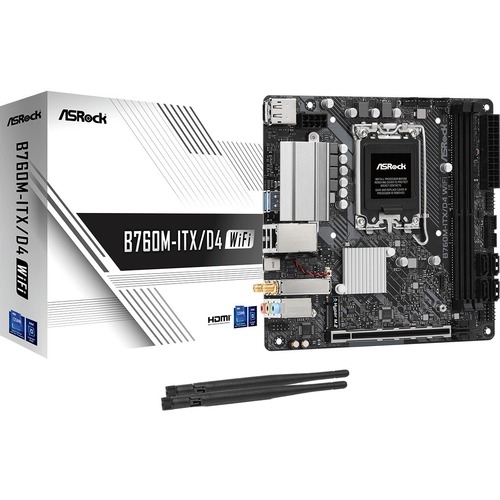

ASRock Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ITX - Core Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SA B76
No Longer Available
ASRock Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ITX - Core Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Rear USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Rear) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 1G LAN, 802.11ax (WiFi 6E) + Bluetooth
- Supports ASRock Auto Driver Installer
Audio Channels | 7.1 |
Onboard Video | CPU Dependent Video |
Form Factor | Mini ITX |
Width | 170.2 mm |
Depth | 170.2 mm |
Number of Total Expansion Slots | 1 |
Number of PCI Express x16 Slots | 1 |
PCI Express Standard | PCI Express 4.0 |
Total Number of PCI Express Slots | 1 |
Bluetooth | Yes |
Gigabit Ethernet | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Number of SATA Interfaces | 4 |
Total Number of Onboard USB Ports | 6 |
Number of Onboard USB 2.0 Ports | 4 |
Number of M.2 Interfaces | 1 |
Product Type | Gaming Desktop Motherboard |
Manufacturer Part Number | B760M-ITX WIFI D4 |
Manufacturer Website Address | http://www.asrock.com |
Manufacturer | ASRock, Inc |
Product Name | B760M-ITX/D4 WiFi Gaming Desktop Motherboard |
Brand Name | ASRock |
HDMI | Yes |
HDMI Version | 2.1 |
Number of Network (RJ-45) Ports | 1 |
DisplayPort | Yes |
Total Number of USB Ports | 5 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.2 Gen 1 Ports | 2 |
RAID Levels | 5 |
10 | |
1 | |
0 | |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
RoHS | |
ErP/EuP Ready | |
Brand Compatibility | Intel |
Maximum Memory Supported | 64 GB |
Memory Technology | DDR4 SDRAM |
Number of Memory Slots | 2 |
Memory Form Factor | DIMM |
UDIMM | |
Memory Speed Supported | 5333 MHz |
4266 MHz | |
3200 MHz |
Processor Supported | Core |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Chipset Manufacturer | Intel |
Chipset Model | B760 |
Processor Generation Supported | 12th Gen |
13th Gen | |
12th Gen | |
13th Gen |
