Bitfenix Bfc-Esm-150-Kkwgk-Rp Enso Mesh Case Black Mesh Front Panel Bfc-Esm-150-Kkwgk-Rp

Name: Bitfenix Bfc-Esm-150-Kkwgk-Rp Enso Mesh Case Black Mesh Front Panel Bfc-Esm-150-Kkwgk-Rp
Brand: Bitfenix
SKU: 272465
Availability: OutOfStock

SKU

272465

Brand

Bitfenix

Manufacturer Link

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

ENSO MESH

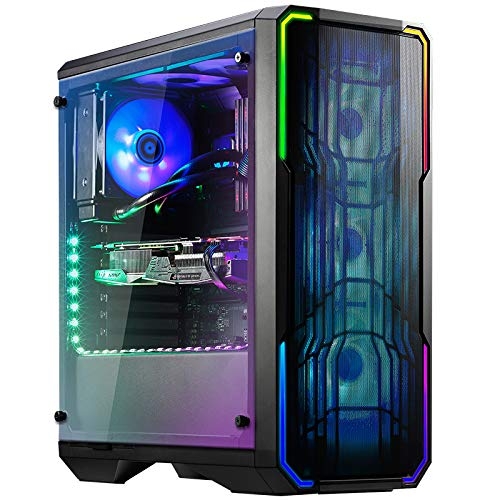

The ENSO MESH is the latest addition to ENSO chassis series. ENSO MESH not only presents BitFenix simple beauty PC concept with the latest AURA SYNC 3 pin addressable RGB LED technology and also offers the best cooling performance with its High density mesh front design. The core of the ENSO MESH is its clean design, well balanced between a perfectly organized interior structure and the sleek exterior design. It is complemented by a tempered glass side panel and the latest in RGB illumination effects, highlighting the clean and discreet lines of the High density mesh front panel.


Thermal Capability To cool down the components, high density mesh on the front panel has offered smooth intake. ENSO MESH supports up to two 140mm fans or a 360mm radiator in the front while a 120mm rear-fan or radiator at the rear and up to two 120mm fans in the top will push the hot air out. ENSO also supports up to 160mm high CPU air cooler.	See-through-tinted 4mm Tempered Glass Side Panel The ENSO MESH comes with a high-quality tempered glass side panel with a strength of 4mm. The tempered glass panel is see-through-tinted, allowing a peak into the case showing off the now often RGB illuminated main components.	Clean Interior With 23mm Cable Management Space Behind Motherboard Tray The ENSO MESH comes with a PSU shroud hiding the PSU and up to two HDDs beneath it, while three SSDs can be attached to the back of the motherboard tray, showing only the motherboard, graphics cards and the cooling solution through the tempered glass panel. The 23mm cable management space behind motherboard tray makes it an easy job to manage the cables clean. With the drive-trays out of the way, the ENSO MESH provides plenty of space for graphics cards with a length up to 340mm.

Sleek Design With Mesh Front Panel

The clean design concept is well balanced between a perfectly organized interior structure and a sleek exterior design. It is complemented by a 4mm see-through-tinted tempered glass panel on the side and addressable RGB illumination surrounding the High density mesh front.

AURA SYNC 3 Pin AddressableRGB Technology

The RGB illumination of the ENSO MESH supports the latest ASUS AURA Sync 3 pin addressable RGB motherboards, currently found in high-end segment. It enables users to coordinate multiple color lighting on different devices, including the all new Alchemy 3.0 addressable RGB strip, all controlled and synchronized by the ASUS AURA software bundled with Asus AURA SYNC 3 pin motherboards.

Easy Clean With Removable Dust Filters

To keep the interior of the ENSO MESH dust-free, multiple filters are placed around the case. The front and top filters are attached via magnets and can be easily slid off to clean it. The ENSO MESH also features BitFenix Sideway-removable PSU filters in the bottom, thus enabling users to remove the PSU filter easily without lifting or moving the case.

Color	Black, White
Material	Steel │ Plastic │ Tempered Glass
Motherboard Support	Mini-ITX, MicroATX, ATX, E-ATX up to 272mm(10.7 inch)
Maximum CPU Cooler Height	160mm(6.2 inch)
Maximum Graphics Card Support (Length)	340mm (13.3inch)
Maximum Graphics Card Support (width)	150mm(5.9 inch)
Cable Management Space	23mm(0.9 inch)
Expansion Slots (PCI-E)	7
Front I/O Ports	2 x USB 3.0, 1 x HD Audio/Mic
2.5" Drive Bay	3
3.5" Drive Bay	2 (Usable as 2.5" bay)
Fan Support(Front)	2 x 140mm or 3 x 120mm
Fan Support(Top)	2 x 120mm
Fan Support(Rear)	1x 120mm
Included Fans(Front)	1 x 120mm Fan (Black)
Included Fans(Rear)	1 x 120mm Fan (Static RGB)
Radiator Support(Front)	240mm x 1 / 280mm x 1 / 360mm x 1 ( Thickness up to 35mm(1.4inch) / width up to 141mm(5.6inch)/ Length up to 400mm(15.7inch) )
Radiator Support(Rear)	1 x 120mm
Power Supply	ATX & EPS 12V, Up to 160mm(6.3inch)
Dimensions (W x H x D)	210mm(8.3inch) x 489mm(19.3inch) x 452mm(17.8inch)
Weight	7kg/ 8.5Kg (15.5lb/ 18.8lb)

Name	Part Number	EAN	UPC
Enso Mesh BLK	BFC-ESM-150-KKWGK-RP	4712883216701	886027015780
Enso Mesh WHI	BFC-ESM-150-WWWGK-RP	4712883216718	886027015797
