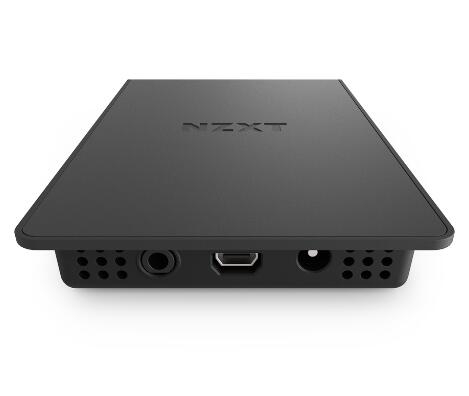

Nzxt Black Grid+ V3 Digital Fan Controller Nzt-ac-grdp3-m1
No Longer Available
Grid+ V3
-
Finding the right mix between cooling and noise reduction can be complex and time-consuming, even for experienced builders. GRID+ provides a smart solution for advanced digital fan control: you can easily install and control your fans using the intuitive CAM dashboard.
Prefer to set your own fan profiles? CAM enables that, too. With GRID+, you won’t have to choose between silence and cooling–you’ll get the perfect balance of both.
-
CAM-powered digital fan controller for precise and efficient cooling
-
Supports 6 separate channels, automatically detecting 3-pin fans and 4-pin PWM fans; delivers up to 5 watts of power per channel
-
0dB fan feature for near silent operation.
-
Slim profile and magnetic back for simple installation
-
Adaptive Noise Reduction technology automatically optimizes cooling and fan noise
Finding the right mix between cooling and noise reduction can be complex and time-consuming, even for experienced builders. GRID+ V3 provides a smart solution for advanced digital fan control: you can easily install and control your fans using the intuitive CAM dashboard. Prefer to set your own fan profiles? CAM enables that, too. With GRID+ V3, you won’t have to choose between silence and cooling–you’ll get the perfect balance of both.
SMART FAN CONTROL
If manual fan control is your preference, GRID+ V3 supports both voltage and PWM control, and you can choose a separate fan profile for each channel: Silent, Performance, Fixed, or Custom. Label each fan channel, build your own custom fan curves, and tune your system using the intuitive CAM dashboard.
SIX CHANNELS
Each channel automatically detects if you’ve connected a 3-pin fan or 4-pin PWM fan. GRID+ V3 includes two Y-splitter cables for installing additional fans.
PURE SILENCE
For nearly silent operation, your custom profiles can use the 0dB feature on Grid+ V3 to disable fans completely when temperatures are within the safe limits of your build.
EASY AND DISCREET INSTALLATION
GRID+ V3 features a slim profile, measuring only 15mm in height, and includes a magnetic back, making it quick and easy to install; it even fits behind most motherboard trays.
ADAPTIVE NOISE REDUCTION
Our unique Adaptive Noise Reduction uses an on-board noise sensor to measure and learn the specifics of your system to find the ideal balance between fan speed and cooling. With up to a 40% reduction in fan noise level, you won’t need to waste time designing custom fan curves. Leveraging machine learning to improve its results, this will ensure your fan settings are always optimal, even if you change hardware.
| Dimensions | 125 x 78 x 15 mm (GRID+ Unit) 35 x 15 x 10 mm (Noise Detection Module) |
| Material(s) | Steel, Plastic, PCB |
| Weight | 147g |
| Mounting | Magnet or 3M Dual Lock |
| Control Method | Software via CAM |
| Fan Channel Quantity | 6 |
| Fan Support | 3-pin or 4-pin PWM |
| Output Channel Voltage | 5W Max |
| Input Connector | 12V with 4-pin Molex 3.5mm Audio Jack for Noise Detection Module Micro-USB |
| Included Accessories | 1 x Noise Detection Module 1 x 450mm Extension Cable for Noise Detection Module 1 x 600mm Micro-USB cable 1 x Molex Power Cable 2 x 1 to 3 Fan Splitter Cable 5 x 100mm Zip Tie 2 x 40x13mm 3M Velcro Tape 1 x 15x13mm 3M Velcro Tape |
| Warranty | 2 Years |
| Model Number | AC-GRDP3-M1 |
| EAN | 5060301693771 |
| UPC | 815671013453 |
| System Requirements | PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
Highlights:
* CAM-powered digital fan controller.
* Supports 6 separate channels.
* Automatically detecting 3-pin fans and 4-pin PWM fans.
* Delivers up to 5 watts of power per channel.
* 0dB Fan feature for near silent operation.
* Slim profile and magnetic back for simple installation.
* Adaptive Noise Reduction technology.
Would you like to know more? Check out the full product information page.
