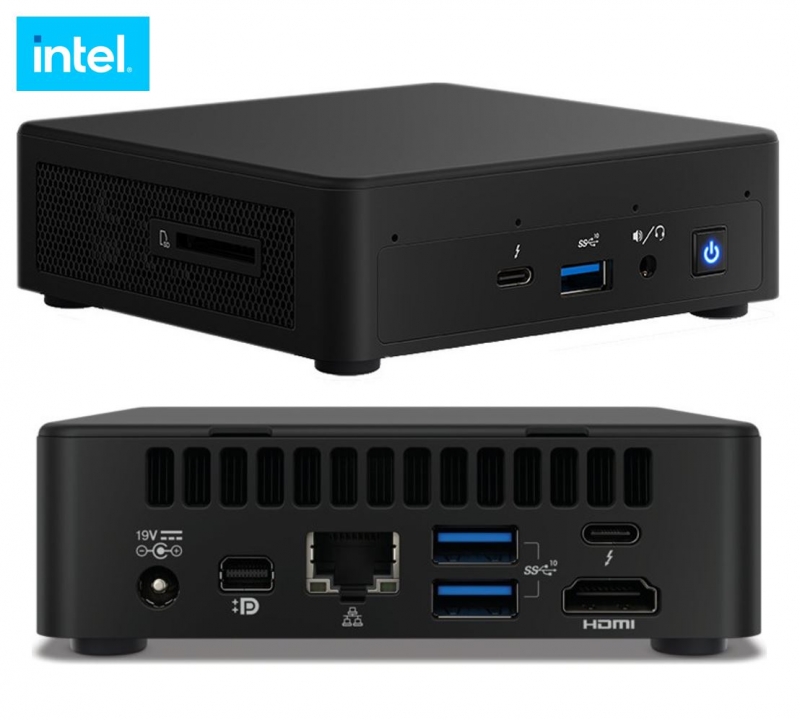

Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Tiger Canyon
Status Launched
Launch Date Q1'21
Expected Discontinuance 1H'24
Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Number NUC11TNBi3
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
TDP 15 W
DC Input Voltage Supported 12-24 VDC
Processor Included Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
# of Cores 2
# of Threads 4
Max Turbo Frequency 4.10 GHz
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported ‡ 4
Expansion Options
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡ PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)

New Intel NUC i3-1115G4, SODIMM DDR4 (0/2), M.2 (0/1), UHD Graphics, GbE, WiFi 6, HDMI 2.0b (2), DP 1.4 USB-C (2)
