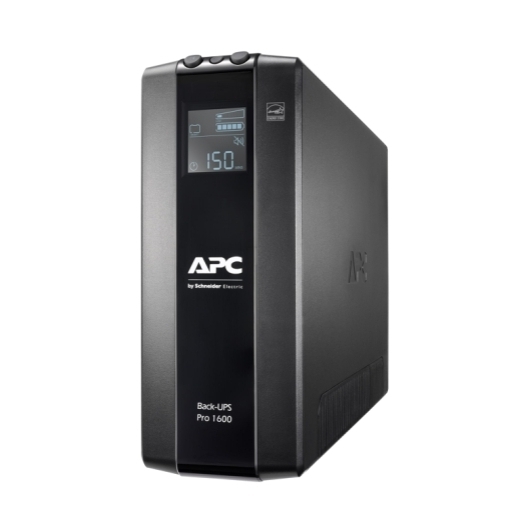

APC Back-UPS Pro 1600VA/960W Line Interactive Ups, Tower, 230V/10A Input, 8x Iec C13 Outlets, Lead Acid Battery, Lcd, Avr BR1600MI
SKU
369627
Brand
MPN
BR1600MI
Warranty
Standard Manufacturer's Warranty
$794.00
Buy Now And Earn 794 Reward Points!
QUICK OVERVIEW
LCD Display, Ideal for High Performance Computers, 2 Year Warranty
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery
This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 8 minutes. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 960 W
Rated power in VA 1600 VA
Input Connection Type IEC 60320 C13
Output connection type- 6 IEC 60320 C13, 2 IEC 60320 C13 surge
Battery type Lead-acid battery
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 176...294 V
Maximum input current 10 A
Switching current capacity 10 A
Maximum configurable power in W 960 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Maximum configurable power in VA 1600 VA
Product certifications- A-Tick, C-Tic, CE, EAC, RCM, TISI
Marking- GS Mark
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Heat dissipation 21.5 Btu/h
Mounting mode- Not rack mountable
Replacement Battery -APCRBC166
This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 8 minutes. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 960 W
Rated power in VA 1600 VA
Input Connection Type IEC 60320 C13
Output connection type- 6 IEC 60320 C13, 2 IEC 60320 C13 surge
Battery type Lead-acid battery
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 176...294 V
Maximum input current 10 A
Switching current capacity 10 A
Maximum configurable power in W 960 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Maximum configurable power in VA 1600 VA
Product certifications- A-Tick, C-Tic, CE, EAC, RCM, TISI
Marking- GS Mark
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Heat dissipation 21.5 Btu/h
Mounting mode- Not rack mountable
Replacement Battery -APCRBC166
Output
Max Configurable Power (Watts)
960 Watts / 1.6kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 - 294V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
16hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
11 Watts
Runtime
Efficiency
Communications & Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
100MM, 10.0CM
Maximum Width
250MM, 25.0CM
Maximum Depth
382MM, 38.2CM
Net Weight
10.9KG
Shipping weight
11.65KG
Shipping Height
330MM, 33.0CM
Shipping Width
485MM, 48.5CM
Shipping Depth
225MM, 22.5CM
Color
Black
Master Carton Dimensions (Length x Width x Height)
9144 x 1283 x 6502MM
Master Carton Units
1.0
Master Carton Weight
13.4
SCC Codes
10731304346910
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
22.0BTU/hr
UPAPC-BR1600MI
