Brother Mfc-l3745cdw Wireless Networkable Colour Laser Mfc 22 Ppm With 250 Sheet Capacity. Led
No Longer Available
QUICK OVERVIEW
DESCRIPTION

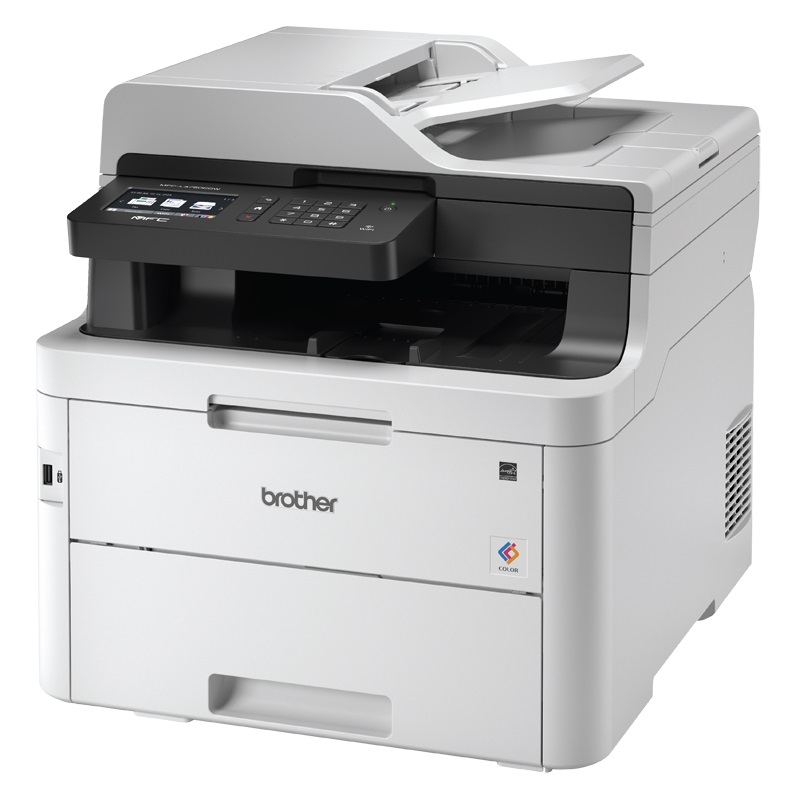

Brother’s MFC-L3745CDW is a multi-function device that delivers best value with the highest LED laser quality to small businesses. This machine provides 2400dpi print quality by default, giving you professional laser quality prints out of the box without the hassles of configuration, along with a wide range of connectivity options so you can quickly and efficiently print and scan from your preferred devices.
Fast print speeds of up to 22 pages per minute
Large paper capacity of 250 sheets
Automatic 2-sided (duplex) printing
50 sheet Auto Document Feeder (ADF)
Easy to use 9.3cm colour touchscreen
Wired and wireless connectivity
Print from or scan directly to a USB stick
Up to 1,000 pages in-box toners
ConsumablesColour Toner Standard Yield (TN-253C/TN-253M/TN-253Y) Up to 1,300 pages*
Black Toner High Yield (TN-253BK) Up to 2,500 pages*
Colour Toner High Yield (TN-257C/TN-257M/TN-257Y) Up to 2,300 pages*
Belt Unit: Up to 50,000 pages (2-page per job)(BU-223CL)
Waste Toner Box: Up to 50,000 pages (WT-223CL)
Drum Unit: Up to 18,000 pages (1-page per job)(DR-253CL)
Basic Specs
FUNCTIONS
Print,Scan,Copy,Fax
PRINTER TYPE
Laser Printer
PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT)
410 mm x 475 mm x 414 mm
PRINT SPEED
Up to 22 ppm (Quiet Mode: Up to 12 ppm)
PAPER SIZE
A4, Letter, A5, A5 (Long Edge), A6, Executive
MAXIMUM PAPER CAPACITY
Max. 250 sheets
WARRANTY
1 year Return to Base Warranty
RESOLUTION
600 x 600 dpi, 2,400 dpi (600 x 2,400) quality
2-SIDED - PAPER TYPE
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
2-SIDED - PAPER SIZE
A4
Print Media
PAPER INPUT - PAPER TRAY #1 - PAPER TYPE
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
PAPER INPUT - PAPER TRAY #1 - MAXIMUM PAPER CAPACITY
Approx. 250 sheets
PAPER INPUT - MANUAL FEED SLOT - PAPER TYPE
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
PAPER INPUT - MANUAL FEED SLOT - MAXIMUM PAPER CAPACITY
Max. 1 sheet
PAPER OUTPUT
150 sheets Face Down (80g/m2), 1sheet face-up (straight paper path)
Copy
COLOUR
Yes
MONOCHROME
Yes
MULTIPLE COPIES
Yes
ENLARGE/REDUCE
25% - 400% in 1% increments
RESOLUTION
600 x 600 dpi
Connectivity
USB
USB 2.0
LAN
10Base-T/100Base-TX
WIRELESS LAN
IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Scan
COLOUR SCANNING
Yes
MONOCHROME
Yes
COLOUR DEPTH - INPUT
48 bit color Processing
COLOUR DEPTH - OUTPUT
24 bit color Processing
GREYSCALE - INPUT
16 bit color Processing
GREYSCALE - OUTPUT
8 bit color Processing
RESOLUTION - INTERPOLATED
Max. 19,200 dpi x 19,200 dpi
RESOLUTION - SCANNER GLASS
Max. 1,200 dpi x 2,400 dpi
RESOLUTION - ADF
Max 1,200 dpi x 600 dpi
SCANNING WIDTH - ADF
Max. 215.9 mm
SCANNING LENGTH - ADF
Max. 355.6 mm
Fax
MODEM SPEED
33,600bps
GREYSCALE - MONO
8bit / 256 levels
GROUPS
Max 20 groups
BROADCASTING
250 locations, 50 locations (Manual)
SPEED DIAL
200 locations
AUTOMATIC REDIAL
Yes
MEMORY TRANSMISSION
Up to 500 pages (ITU-T Test Chart, Standard Resolution, JBIG)
OUT OF PAPER RECEPTION
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Display & Memory
DISPLAY
9.3 cm TFT Colour Touchscreen LCD
MEMORY CAPACITY
512 MB
Weight
WEIGHT
18.9 kg
Operation
POWER SOURCE
220-240 V AC 50 / 60Hz
POWER CONSUMPTION - COPYING
Approx. 430 W
POWER CONSUMPTION - READY
Approx. 75 W
POWER CONSUMPTION - SLEEP
Approx. 10.1W
POWER CONSUMPTION - POWER OFF
Approx.0.04 W
NOISE LEVEL
43 dB(A)
TEMPERATURE - OPERATING
10℃ to 32℃
Network
WIRELESS NETWORK SECURITY
SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos
System Requirements
WINDOWS® OPERATING SYSTEM
Server 2008 (Network only), Server 2008 R2 (Network only), 7 SP1, 8, 8.1, Server 2012 (Network only), Server 2012 R2 (Network only), 10, Server 2016 (Network only)
MAC OPERATING SYSTEM
v10.11.6, 10.12.x, 10.13.x (Download only)
