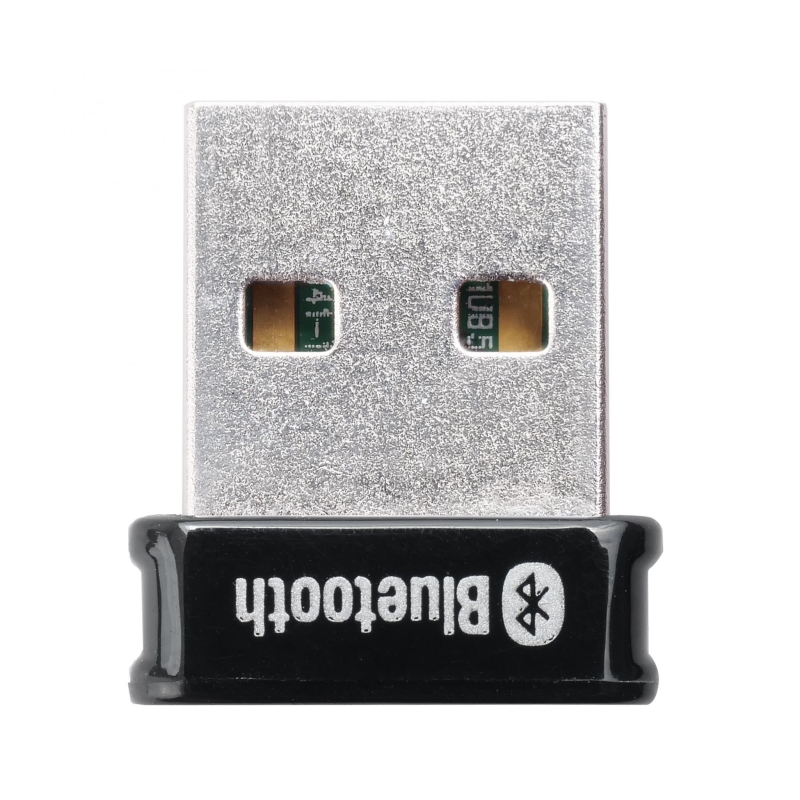

Edimax Bluetooth 5.0 Nano USB Adapter USB2.0 3Mbps, Single Chip Bluetooth 5 Controller, Bluetooth Baseband Model and BT RF In A Single Chip (BT-8500)

SKU
303122
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$21.00
Buy Now And Earn 21 Reward Points!
HARDWARE
Interface 1 x USB 2.0 Type A
Antenna 1 x Internal PiFa Antenna
Dimensions 7.1 (H) x 14.9 (W) x 17.4 (D) mm
Weight 2g
BLUETOOTH
Standards Bluetooth 5 specification compliant
Frequency Band 2402~2480MHz
Maximum Data Speed 3Mbps (class BT-BR/EDR) : 2Mbps(BLE)
Output Power 8dB (max.)
Receiver Sensitivity 94dBm (2Mbps EDR)
87dBm (3Mbps EDR)
98dBm (BLE)
06dBm (125K BLE long range)
OTHERS
Certification CE, FCC, NCC, BSMI, BQB
Environmental
Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~140°F (-20~60°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: Max. 95% (NonCondensing)
System Requirement Windows 8.1/10 32bit/64bit or above
Linux: Kernel 2.6.32 - 5.3 or above (support Fedora & Ubuntu only)
Installation Easy setup wizard with auto run configuration
Package Content Bluetooth 5.0 USB Adapter
Quick Installation Guide
Edimax Bluetooth 5.0 Nano USB Adapter USB2.0 3Mbps, Single Chip Bluetooth 5 Controller, Bluetooth Baseband Model and BT RF In A Single Chip
