OPTEX S3605A BX-100PLUS DUAL 30M BOUNDARY GUARD OUTDOOR-2YRS
SKU
403092
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$195.00
Buy Now And Earn 195 Reward Points!
BX-100PLUS Dual infrared beams Range: Outdoor 30m / Indoor 60m IP54 Audible Alarm Indicator Separate Form A and Form B Relays

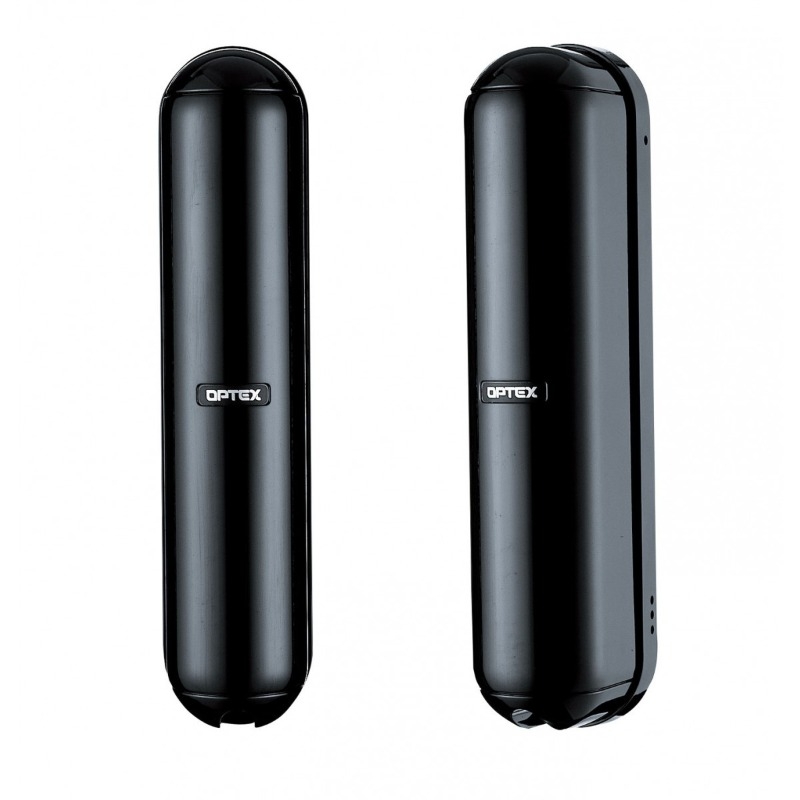

The BX-100PLUS consists of a pair of small, discreet dual-infrared beams designed to protect the immediate perimeter of a building. The beams are particularly useful in providing coverage for windows, doors and roller shutter doors and can be used to activate an intruder alarm system, lights or CCTV before a break-in occurs, minimizing damage to property and risk to on-site personnel.
Features
- Dual IR pulsed beam system
- Internal sounder
- Easy alignment with visual and audible indicator
- Light reduction filter
- 99% beam blocking stability
- N.O. and N.C. relay outputs
- Active infrared technology
- Slim design
| Model | BX-100PLUS |
| Detection Range | 30 m |
| Maximum detection range | 300 m |
| Interruption period | 50 msec |
| Power supply | 10.5 to 28Vdc |
| Current consumption (transmitter+receiver) | 75 mA (max ) |
| Alarm period | 2 ±1 sec (delay) |
| Beeping period | 15 ±1 sec (delay) |
| Volume of audible alarm indicator | Approx 70 dB (at 1 meter distance) |
| Relay output | 2 relay outputs N O and N C 28 Vdc @ 0.2 A (max ) each |
| Tamper switch | N C opens when cover is removed |
| Operating temperature | -35°C to +55°C |
| Environmental humidity | 95% max |
| Alignment angle | ±92°Horizontal |
| Weight (transmitter+receiver) | 400 g |
| Dimensions (H x W x D) | 230.5 mm x 51.5 mm x 61 mm |
| Weatherproof | IP54 |
