OPTEX BXS-AM BLK PIR 2 x 12M 180DEG PET ANTI-MASK OUTDOOR-2YRS
SKU
403000
Brand
MPN
BXS-AM
Warranty
Standard Manufacturer's Warranty
$227.00
Buy Now And Earn 227 Reward Points!
Boundary Outdoor PIR Detector : BX SHIELD Series
Features:
- Anti Masking

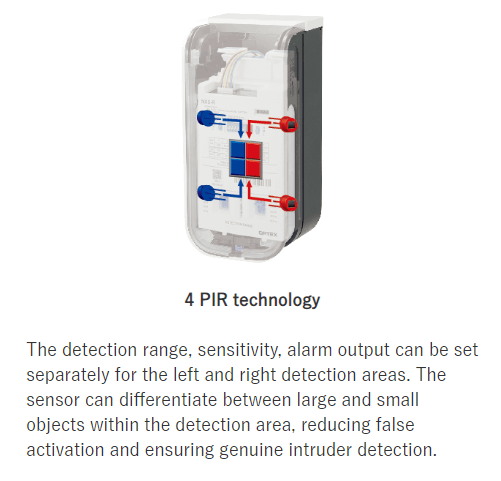

- 4 PIR technology
- 24 m (12 m on each side) adjustable to 5 ranges (2.5 m, 3.5 m, 6.0 m, 8.5 m, 12.0 m)
- Individual detection area and sensitivity setting
- Extreme high detection mode
- SMDA logic for advanced temperature compensation
- Individual signal outputs (right / left)
- Double conductive shielding against bright light disturbance
- Back tamper
- Automatic walk test mode
| Detection method | Passive infrared |
| Coverage | 24 m : 12 m on each side, |
| 4 zones : 2 zones on each side, 180°narrow | 4 zones : 2 zones on each side, 180°narrow |
| PIR distance limit | list the possible range 2.5, 3.5, 6, 8.5, 12 m |
| Detection angle from wall | to Wall : 0°, away Wall : 3°, selectable |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity | Normal : 2.0°C at 0.6 m/s / Extreme high : 1 0°C(1 8°F)at 0 6 m/s (selectable for each side individually) |
| Power input | 9.5 to 18 VDC |
| Current draw (except walk test) | 34 mA max. at 12 VDC |
| Alarm period | 2.0 ±1 sec. |
| Warm-up period | 60 sec. or less (LED blinks) |
| Alarm output (R) | 28 VDC 0.1 A max.,(Idividual : Right or General], (NO. or N.C.) re selectable |
| Alarm output (L) | 28 VDC 0.1 A max.,(Idividual : Right or General], (NO. or N.C.) re selectable |
| Trouble output | N.C. 28 VDC 0.1 A max. |
| Tamper output | N.C. 28 VDC 0.1 A max. open when face cover, main unit or base unit is removed |
| Operating temperature | -30°C to + 60°C |
| Environment humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor) |
| Mounting height | 0.8 to 1.2 m |
| Weight | 430 g |
