OPTEX BXS-RAM BLK PIR 2x12M 180DEG PET ANTI-MASK BATT PWR IP55-2YR
SKU
407620
Brand
MPN
BXS-RAM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$277.00
Buy Now And Earn 277 Reward Points!
Boundary Outdoor PIR Detector : BX SHIELD Series
Features:
- Battery Operated (Batteries & battery box optional)
Refer to OPTIONS
- Anti Masking

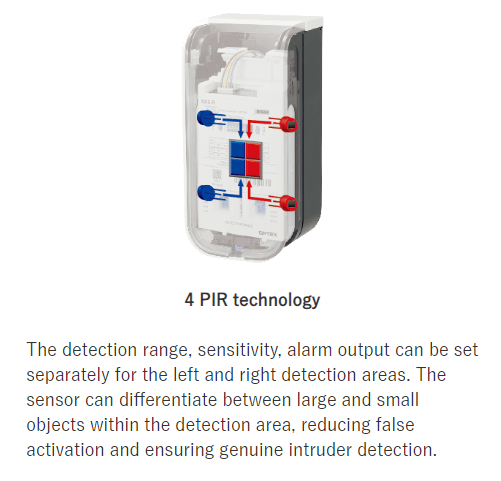

- 4 PIR technology
- 24 m (12 m on each side) adjustable to 5 ranges (2.5 m, 3.5 m, 6.0 m, 8.5 m, 12.0 m)
- Individual detection area and sensitivity setting
- Extreme high detection mode
- SMDA logic for advanced temperature compensation
- Individual signal outputs (right / left)
- Double conductive shielding against bright light disturbance
- Back tamper
- Automatic walk test mode
| Detection method | Passive infrared |
| Coverage | 24 m : 12 m on each side, |
| 4 zones : 2 zones on each side, 180°narrow | 4 zones : 2 zones on each side, 180°narrow |
| PIR distance limit | 2.5 to 12 m (5 levels) |
| Detection angle from wall | to Wall : 0°, away Wall : 3°, selectable |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity | Normal : 2.0°C at 0.6 m/s / Extreme high : 1 0°C(1 8°F)at 0 6 m/s (selectable for each side individually) |
| Power input | 3 to 9 VDC Lithium or Alkaline batteries |
| Current draw (except walk test) | 15 μA stand-by / 8 mA max. at 3 VDC |
| Alarm period | 2.0 ±1 sec. |
| Warm-up period | 60 sec. or less (LED blinks) |
| Alarm output (R) | Solid State switch, 10 VDC 0.01 A max.,(Individual : Right or General) (N.O. or N.C.) are selectable |
| Alarm output (L) | Solid State switch, 10 VDC 0.01 A max.,(Individual : Right or General) (N.O. or N.C.) are selectable |
| Trouble output | Solid State switch, 10 VDC 0.01 A max. (N.O. or N.C.) is selectable |
| Tamper output | Tamper output is shared with trouble output. |
| Operating temperature | -30°C to + 60°C |
| Environment humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor) |
| Mounting height | 0.8 to 1.2 m |
| Weight | 550 g |
