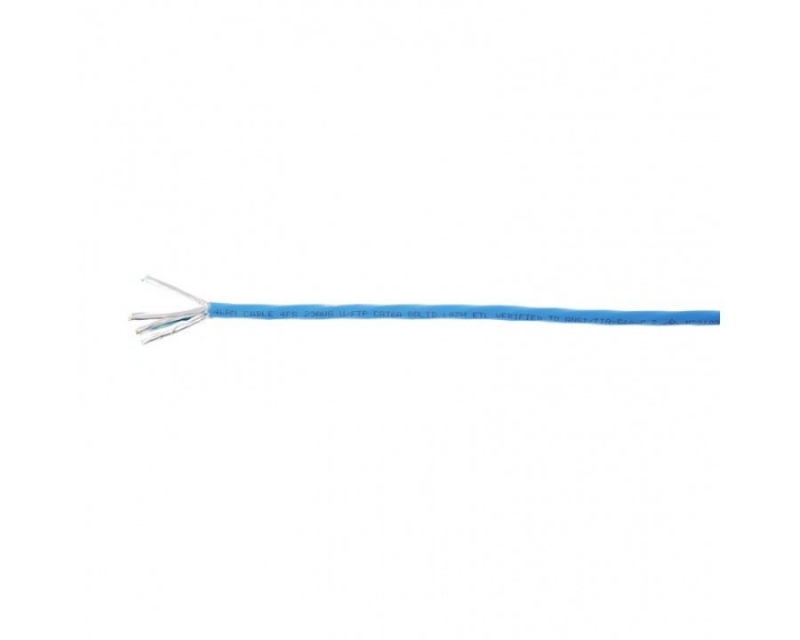

Achieve superior network performance with our 4LAN CAT6A U/FTP Data Cable, the premium choice for high-speed, interference-free connectivity. This cable's advanced design features individually screened pairs (U/FTP), which significantly enhances performance by minimising alien crosstalk between adjacent cables. This makes it an ideal solution for dense cabling environments and critical applications demanding the highest level of data integrity, such as 10 Gigabit Ethernet.

Engineered for safety and compliance, this CAT6A cable is sheathed in a blue Low Smoke Zero Halogen (LSZH) compound. In the event of a fire, an LSZH sheath emits very low levels of smoke and no toxic halogen gases, making it a mandatory requirement for public and high-traffic areas. This commitment to safety is why it is trusted and deployed in education, government, and financial institutions across Australia.

Built with quality at its core, the cable consists of four pairs of 23 AWG solid copper conductors, ensuring excellent signal transmission and reliability. It is independently tested by 3P to perform at frequencies up to 500MHz and exceeds the stringent requirements of both ANSI/TIA-568-C.2 and ISO/IEC 11801 standards. The cable is also ACMA approved, guaranteeing it meets all Australian regulatory standards.

For installer convenience, the cable is supplied on a durable 305-metre wooden reel and features clear length markings from 0 to 305 metres, allowing for easy inventory management and precise installations. Its construction is perfectly suited for reliable and straightforward IDC terminations, ensuring a robust and stable connection every time.

FEATURES

• High-performance cable suitable for 10 Gigabit Ethernet
• U/FTP individually screened pairs to reduce alien crosstalk
• Independently tested by 3P to 500MHz
• Exceeds ANSI/TIA-568-C.2 & ISO/IEC 11801 standards
• Constructed with 4 pairs of 23 AWG solid copper conductors
• ACMA approved for use in Australia
• Length markings from 0-305mtr for easy measurement
• Supplied on a durable wooden reel
• Blue Low Smoke Zero Halogen (LSZH) outer sheath
• Suitable for standard IDC terminations

SPECIFICATIONS

• SKU: C6AFLSZH
• Cable Type: CAT6A
• Shielding: U/FTP (Unshielded/Foiled Twisted Pair) - Each pair is foil screened
• Conductor: 23 AWG Solid Copper
• Frequency: 500MHz
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Sheath Colour: Blue
• Length: 305 metres
• Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801
• Approvals: ACMA, 3P Tested

WARRANTY

1-Year Limited Warranty
