Startech Usb C To Vga Cable - 3m / 10 Ft - Black - 1920 X 1200 - Usb C Cable - Computer Monitor

SKU
259638
Brand
MPN
CDP2VGA3MBNL
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$68.00
Buy Now And Earn 68 Reward Points!

QUICK OVERVIEW

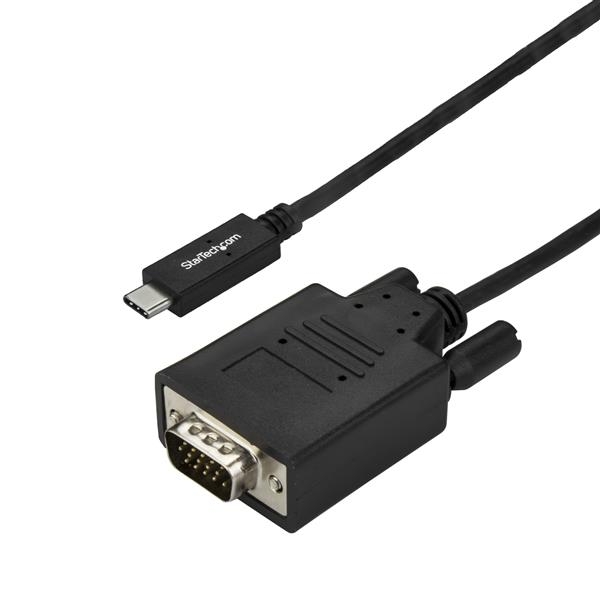

Cable - USB-C to VGA cable CDP2VGA3MBNL

Overview

This USB-C™ to VGA adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C™ device to your VGA monitor or projector. The adapter offers a connection distance of up to 3 m (10 ft.) and works with USB-C devices that support DP Alt Mode, such as the MacBook, Chromebook Pixel™ and Dell™ XPS™ models 15 and 13. It's also compatible with Thunderbolt™ 3 ports.

Clutter-free installation

At 3 m (10 ft.) in length, this adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.

For shorter installations, StarTech.com also offers a 1 m (3 ft.) USB-C to VGA cable (CDP2VGAMM1MB) and [% product id="CDP2VGAMM2MB" text="2 m (6 ft.) USB-C to VGA cable (CDP2VGAMM2MB)"], enabling you to choose the right cable length for your custom installation needs.

Crystal-clear picture quality

The adapter harnesses the video capabilities that are built into your USB Type-C connector to deliver video resolutions up to 1920x1200, providing support for your high-resolution VGA monitors - great for multitasking on high-resolution VGA displays. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other HD work environments.

The CDP2VGA3MBNL is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Performance
Wide Screen SupportedYes
Physical Characteristics
Cable Length3 m [9.8 ft]
ColorBlack
Product Height14 mm [0.6 in]
Product Length3000 mm [118.1 in]
Product Weight130 g [4.6 oz]
Product Width22 mm [0.9 in]
Special Notes / Requirements
NoteYour USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
What's in the Box
Included in PackageUSB-C to VGA cable
Performance
Supported Resolutions1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
Maximum Analog Resolutions1920x1200 or 1080p
Packaging Information
Shipping (Package) Weight0.1 kg [0.3 lb]
Hardware
Ports1
Output SignalVGA
Converter TypeCable Adapters
Chipset IDRealtek - RTD2166
Realtek - RTS5404
Environmental
Storage Temperature-10?C to 70?C (14?F to 158?F)
Operating Temperature0?C to 45?C (32?F to 113?F)
Humidity5%-90% RH (no condensation)
Connector(s)
Connector AVGA (15 pin, High Density D-Sub) Male Output
USB-C (24 pin) DisplayPort Alt Mode Male Input
Marketing TextThis USB-C to VGA adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C device to your VGA monitor or projector.
PI DateFeb 2018
Brand NameStartech
Manufacturer Web Sitehttp://www.startech.com
Product TypeUSB-C to VGA Cable
Cable ColorBlack
Cable Length3meter
Depth (mm)3000.0
Height (mm)14.0
Width (mm)22.0
Weight (Grams)130.0
Compliance Standrards* RoHS Compliant
Operating Temperature0 to 45°C
Other Features* Position your devices as needed throughout your workspace, with reduced cable clutter
* Hassle-free connection with the reversible USB-C connector
* Crystal-clear picture quality with support for video resolutions up to 1920x1200
Warranty Information2 Years
