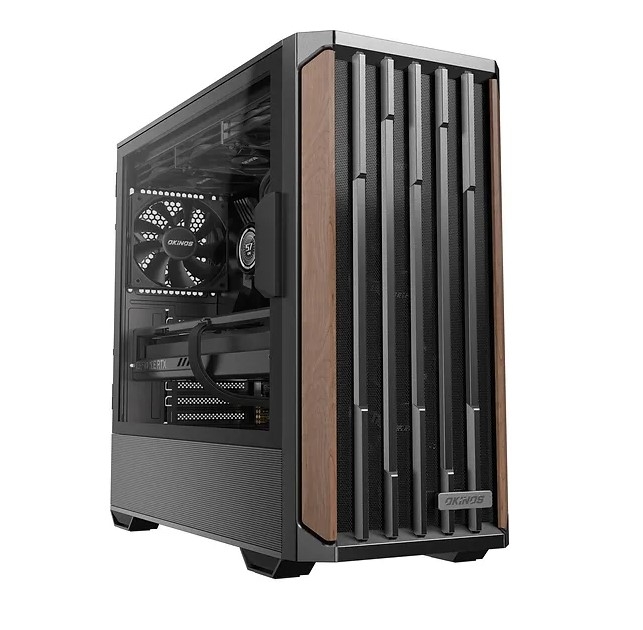

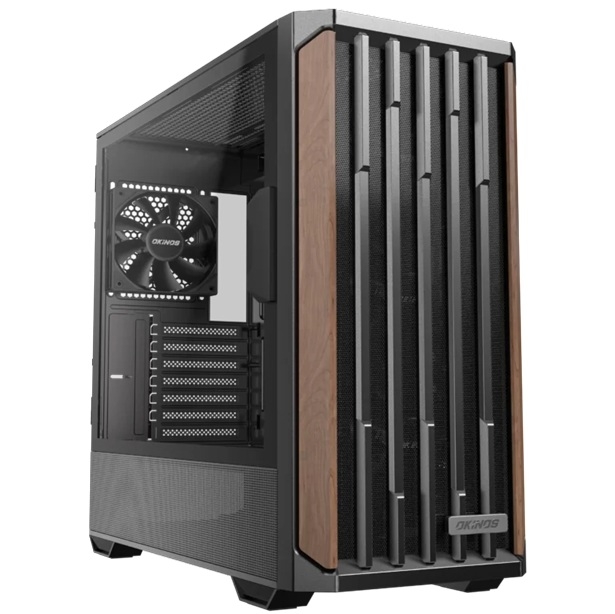

Okinos Cypress 7 Wood, Mid Tower Gaming Pc Case, Atx/M-Atx/Itx, Tempered Glass, Usb-c 10Gbps, 4x120mm Pwm Fans, GPU ≤415mm, CPU ≤165mm CAO-CYP7
DESCRIPTION
Okinos Okinos Genuine Walnut Wood PC Case, 4 x 120mm PWM Fans, Mid-Tower, Cypress 7
【Genuine Walnut Wood Fusion with Cutting-Edge Technology】Genuine Walnut Wood panel at the front of the chassis enhances its appearance, blending natural beauty with modern aesthetics.
【Efficient Cooling Configuration, Airflow Reaching 200 CFM】Pre-Installed 3 PWM fans at the front and 1 PWM fan at the rear, the case achieves a meticulously designed airflow path to ensure efficient cooling.
【Extra Cooling Effect through Ultimate Design】Utilizes a unique design with front and right side panel openings to enhance cooling efficiency for sustained performance.
【1.5mm Mesh Design】Case front panel incorporates a 1.5mm mesh design to enhance air intake and cooling efficiency..
【Multiple CPU Cooling Options】A: Water Cooling Solution / B: Air Cooling Solution
【Effortless Access to Internal PC Hardware】Delivering higher and stable performance, the original magnetic tempered glass side panel makes cleaning a breeze and simplifies maintenance tasks.
【Magnetic Tempered Glass Side Panel】Using the original magnetic tempered glass side panel, it does not interfere with certain GPU and allows for easier cleaning of the equipment.
【Hardware Compatibility Tips】Installing a 240mm water cooler on the right side of the chassis will interfere with certain graphics cards. Ensure compatibility when selecting hardware to avoid affecting performance and layout.
【GPU Compatibility Specifications】1. Front fan ≤ 415mm / 2. Rear fan ≤ 390mm / 3. Side-mounted water cooling ≤ 280mm
【Multi- Functional Zone】Introducing Feature-Rich Multi-Functional Zone for Readily Accessible User-Computer Interaction.USB Ports Usage Instructions USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V"
【Superior Dust Protection】Magnetic dust filters on the top and side help block dust and are easy to clean, while maintaining excellent ventilation.
| 3 | Fan |
| 7 | 3.5″ /2.5″ |
| Model Name | Cypress 7 Wood |
| Model Number | OKICC-CP7-ATXBW |
| EAN | 4897121941055 |
| Dimensions | 476 x 220 x 486mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic + Wood |
| Mainboard Support | ATX, M-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 2 , Type-C 10Gbps x 1 , Headphone/Mic Combo Jack |
| Side Panel | Tempered Glass Side Panel |
| Drive Bays | Expansion Slots |
| 2/1 | 2.5″ |
| Front | 3 x 120mm/3 x 140mm |
| Top | 3 x 120mm/2 x 140mm |
| Power Supply Shroud | 2 x120mm |
| Right Hand Side | 2 x120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm PWM fans in front + 1 x 120mm PWM fan in rear |
| Radiator Support | Front |
| 120/140/240/280/360mm | Right Hand Side |
| 120/240mm | Rear |
| 120mm | Clearance |
| Max GPU Length | ≤280mm(when radiator is installed inside of right panel ) |
| ≤390mm(with front fan) | ≤415mm(without front fan) |
| Max CPU Cooler Height | ≤165mm |
| Max PSU Length | (Include cable)≤240mm |
| Miscellaneous | Dust Filter |
| Top / Bottom / Right Side | Net Weight |
| 6.45 Kg | Gross Weight |
