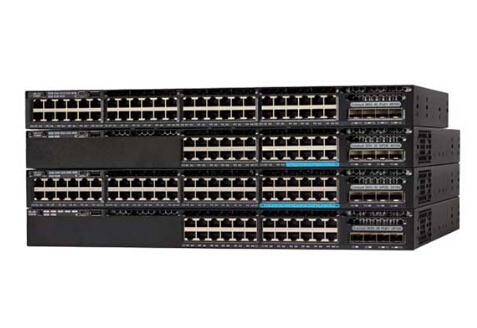

Cisco Catalyst 3650 24 Port Data 4x1g Uplink Lan Base Ws-c3650-24ts-l
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Features
Cisco Digital Network Architecture
Only Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
Bring wired and wireless together
The 3650 switch gives you smart, simple, and highly secure unified access with an integrated wireless controller. Support up to 50 access points and 1000 wireless clients on each switching entity (switch or stack). Get the details.
Get Multigigabit
Prepare for 802.11ac Wave 2 with Cisco Catalyst Multigigabit Technology and get speeds beyond 1 Gigabit on existing Category 5e/6 cables. The 3650 switch has multigigabit ports to support 1, 2.5, 5, and 10-Gbps speeds on select models.
Power your solutions
Select models support PoE and PoE+ to provide up to 30W of power per port, or 60W of power per port with UPOE. Remove the need for additional electrical cabling and circuits to power your access points and IP phones.
Enhance security
Get support for Flexible NetFlow, Cisco TrustSec, and MACsec encryption. Use your network as a security sensor and enforcer. Learn more.
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C3650-24TS-L |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Catalyst |
| Product Model: | 3650-24T |
| Product Name: | Catalyst 3650-24T Ethernet Switch |
| Product Series: | 3650 |
| Product Type: | Ethernet Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 4 |
| Number of Total Expansion Slots: | 4 |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Management: |
|
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 10/100/1000Base-T |
| Twisted Pair Cable Standard: | Category 5e |
| Memory | |
|---|---|
| Flash Memory: | 2 GB |
| Memory Technology: | DRAM |
| Standard Memory: | 4 GB |
| Network & Communication | |
|---|---|
| Layer Supported: | 2 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 447.7 mm |
| Form Factor: | Desktop |
| Rack-mountable | |
| Height: | 43.9 mm |
| Weight (Approximate): | 6.87 kg |
| Width: | 444.5 mm |
| Power Description | |
|---|---|
| Input Voltage: | 110 V AC |
| 220 V AC | |
| PoE (RJ-45) Port: | No |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Reliability | |
|---|---|
| MTBF: | 661800 Hour |
| Warranty | |
|---|---|
| Limited Warranty: | Lifetime |
