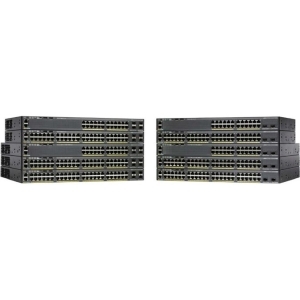

Cisco Catalyst 2960-x 24 Gige 2 X 1g Sfp Ws-c2960x-24ts-ll
SKU
230468
Brand
MPN
WS-C2960X-24TS-LL
Warranty
Standard Manufacturer's Warranty
$3,237.00
Buy Now And Earn 3237 Reward Points!
Catalyst 2960-X series Software FeaturesAll Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C2960X-24TS-LL |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Catalyst |
| Product Model: | 2960X-24TS-LL |
| Product Name: | Catalyst 2960X-24TS-LL Ethernet Switch |
| Product Series: | 2960-X |
| Product Type: | Ethernet Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 2 |
| Number of Total Expansion Slots: | 2 |
| Shared SFP Slot: | No |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Management: |
|
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 10/100/1000Base-T |
| Twisted Pair Cable Standard: | Category 5 |
| Memory | |
|---|---|
| Flash Memory: | 64 MB |
| Memory Technology: | DRAM |
| Standard Memory: | 512 MB |
| Network & Communication | |
|---|---|
| Layer Supported: | 2 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 279.4 mm |
| Form Factor: | Desktop |
| Rack-mountable | |
| Height: | 44.5 mm |
| Weight (Approximate): | 3.72 kg |
| Width: | 444.5 mm |
| Power Description | |
|---|---|
| Input Voltage: | 110 V AC |
| 220 V AC | |
| PoE (RJ-45) Port: | No |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Reliability | |
|---|---|
| MTBF: | 622350 Hour |
