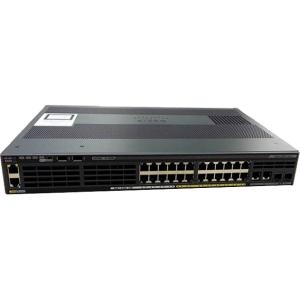

Cisco Catalyst 2960-x 24 Gige Poe 92w 2xsfp + 2x1gbt Lan Base Ws-c2960x-24psq-l
Product Overview
Cisco® Catalyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
Product Highlights
Cisco Catalyst 2960-X Series Switches feature:
● 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
● Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
● FlexStack-Extended capabilities for out-of-the wiring-closet distance stacking of up to 8 switches with 40 Gbps of stack throughput (optional)
● FlexStack-Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
● Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
● 24-port PoE fanless switch for deployment outside the wiring closet
● Reduced power consumption and advanced energy management features
● USB and Ethernet management interfaces for simplified operations
● Application visibility and capacity planning with integrated Full (Flexible) NetFlow and NetFlow-Lite
● LAN Base or LAN Lite Cisco IOS software features
● Enhanced Limited Lifetime Warranty (E-LLW) offering next-business-day hardware replacement
● Identify, classify and control of trusted internal network traffic through Domain Name System as an Authoritative Source (DNS-AS)
Cisco Catalyst 2960-XR Series Switches also offer:
● Power resiliency with optional dual field-replaceable power supplies
● IP Lite Cisco IOS software with dynamic routing and Layer 3 features
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C2960X-24PSQ-L |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Catalyst |
| Product Model: | 2960X-24PSQ-L |
| Product Name: | Catalyst 2960X-24PSQ-L Ethernet Switch |
| Product Series: | 2960-X |
| Product Type: | Ethernet Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 2 |
| Number of Total Expansion Slots: | 2 |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Management: |
|
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 10/100/1000Base-T |
| Twisted Pair Cable Standard: | Category 5 |
| Memory | |
|---|---|
| Flash Memory: | 128 MB |
| Memory Technology: | DRAM |
| Standard Memory: | 512 MB |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Depth: | 368.3 mm |
| Form Factor: | Rack-mountable |
| Height: | 44.5 mm |
| Weight (Approximate): | 5.81 kg |
| Width: | 444.5 mm |
| Power Description | |
|---|---|
| Input Voltage: | 110 V AC |
| PoE (RJ-45) Port: | Yes |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Reliability | |
|---|---|
| MTBF: | 462680 Hour |
| Marketing Text | The Cisco Catalyst 2960-X Series adds a new member to its 2960-X family, the WS-C2960X-24PSQ-L. This is a 24-port 10M/100M/1000M switch that can power up to 8 ports of PoE with ability to deliver a sum total of 110W of PoE power. This switch has four Gigabit Ethernet uplinks: two of them SFP and the other two 10M/100M/1000M copper interfaces enabling choice of fiber or copper connectivity to the aggregation point. |
| PI Date | Apr 2017 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com |
| Product Line | Catalyst |
| Product Model | 2960X-24PSQ-L |
| Product Type | Gigabit Ethernet Switch |
| Mac Address | 16kentries |
| Forwarding Rate | 71.4Mpps |
| Switching Fabric | 216Gbps |
| Jumbo Frame Size | 9216Bytes |
| Expansion Ports | 2 x SFP |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 24 |
| Type | 10/100/1000 |
| Virtual LAN | * MAC-based VLAN assignment enables different users to authenticate on different VLANs. This feature enables each user to have a different data VLAN on the same interface |
| Security Features | * Support for advanced security and intelligent services, including NetFlow Lite and Switch Hibernation, including voice, video, AP powering, and Cisco Enterprise Network services to remote endpoints |
| Standards | * IEEE 802.3z 1000BASE-X * IEEE 802.3ab 1000BASE-T * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX * IEEE 802.1X |
| Quality of Service (QoS) | * Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) congestion avoidance * Flow-based rate limiting and up to 256 aggregate or individual policers per port |
| Output Power | 110Watt |
| Depth (mm) | 280.0 |
| Height (mm) | 44.5 |
| Width (mm) | 445.0 |
| Weight (Kg) | 5.8 |
| Layer Support | 3 |
| Management | Managed |
| RAM Installed | 512MB |
| Flash Memory | 128MB |
| Network Technology | 10/100/1000 |
| Other Features | * CPU: APM86392 600MHz dual core |
| PoE Enabled | Yes |
| Cabling Type | Cat 5 |
