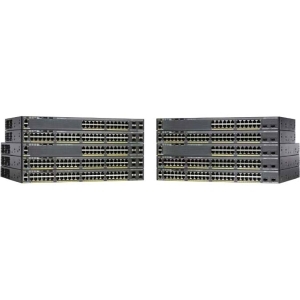

Cisco Catalyst 2960-x 48 Gige, 2 X 1g Sfp Ws-c2960x-48ts-ll
Product Overview
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
Product Highlights
Cisco Catalyst 2960-X switches feature:
● 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
● Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
● FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
● Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
● 24-port PoE fanless switch for deployment outside the wiring closet
● Reduced power consumption and advanced energy management features
● USB and Ethernet management interfaces for simplified operations
● Application visibility and capacity planning with integrated NetFlow-Lite
● LAN Base or LAN Lite Cisco IOS software features
● Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement
Cisco Catalyst 2960-XR models also offer:
● Power resiliency with optional dual field-replaceable power supplies
● IP Lite Cisco IOS software with dynamic routing and Layer 3 features
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C2960X-48TS-LL |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Catalyst |
| Product Model: | 2960X-48TS-LL |
| Product Name: | Catalyst 2960X-48TS-LL Ethernet Switch |
| Product Series: | 2960-X |
| Product Type: | Ethernet Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP+ Slots: | 2 |
| Number of Total Expansion Slots: | 2 |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Management: |
|
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 10/100/1000Base-T |
| Twisted Pair Cable Standard: | Category 5 |
| Memory | |
|---|---|
| Flash Memory: | 128 MB |
| Memory Technology: | DRAM |
| Standard Memory: | 512 MB |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Depth: | 279.4 mm |
| Form Factor: | Rack-mountable |
| Height: | 44.5 mm |
| Weight (Approximate): | 4.04 kg |
| Width: | 444.5 mm |
| Power Description | |
|---|---|
| Input Voltage: | 220 V AC |
| PoE (RJ-45) Port: | No |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| Reliability | |
|---|---|
| MTBF: | 476560 Hour |
