Simplecom CHT815 15-in-1 Usb-c 4K Triple Display Mst Docking Station With Dual Hdmi DP CHT815
SKU
401510
Brand
MPN
CHT815
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$135.00
Buy Now And Earn 135 Reward Points!
Simplecom CHT815 15-in-1 USB-C 4K Triple Display MST Docking Station with Dua

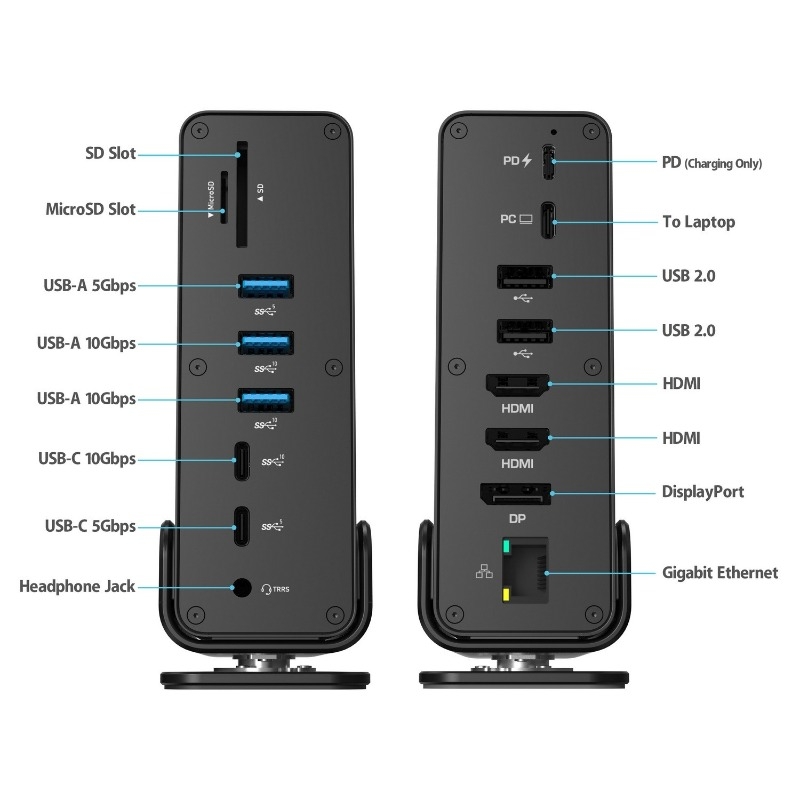

| Material: Aluminum | Host Interface: USB-C Female |
| USB-A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps | USB-C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps |
| Display Ports: 2x HDMI 2.0, 1x DP 1.4 | HDMI Resolution: up to 4K@60Hz (3840x2160) |
| DP Resolution: up to 4K@60Hz (3840x2160) | HDCP Support: HDCP 2.3 compliant, backwards compatible |
| Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps) | Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo&Mic Combo) |
| Card Reader: SD and MicroSD (SuperSpeed 5Gbps) | PD Charging: 1x USB-C Female (for charging only), up to 100W |
| Operation Temperature: 0 - 50°C | Weight: 350g |
| Dimension: 12.6cm(13.8cm*) x 12.1cm x 4.2cm (*with vertical stand) | System Requirements |
| Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support | Thunderbolt USB-C port and USB4 port are recommended |
| Windows 10 or above for MST and extended screens support | macOS does not support MST technology and will only support one extended mode output |
| Laptop GPU with DP1.4 supports up to 3x extended screens | Laptop GPU with DP1.2 supports up to 2x extended screens |
| For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU | Important Note |
| Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function. | Laptop GPU with DP1.2 supports 2x extended screens only, laptop GPU with DP1.4 supports 3x extended screens. |
| For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power. | Package Contents |
| 1x 15-in-1 Docking Station | 1x USB4 Cable |
| 1x Vertical Stand | 1x User Manual |
HXSI-CHT815
