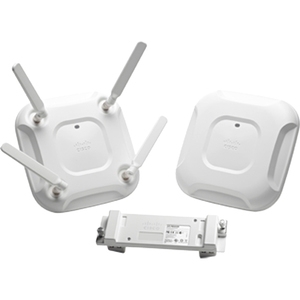

main product photo

Cisco 802.11ac Ctrlr Ap 4x4:3ss W/ Cleanair Air-cap3702i-z-k9

SKU
167253
Brand
Cisco
Manufacturer Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare
Basic
Brand Name: Cisco
Ethernet Technology: Ethernet
Fast Ethernet
Gigabit Ethernet
Form Factor: Ceiling Mountable
HDMI: No
Management Port: Yes
PoE (RJ-45) Port: No
Powerline: No
Product Family: Aironet 3700
Product Model: 3702I
Product Type: Wireless Access Point
USB: No
VGA: No
Wireless LAN Standard: IEEE 802.11ac
Wireless Transmission Speed: 450 Mbit/s
General Information
Brand Name: Cisco
Manufacturer Part Number: AIR-CAP3702I-Z-K9
Manufacturer Website Address: http://www.cisco.com/c/en_au
Manufacturer: Cisco Systems, Inc
Product Line: Aironet
Product Model: 3702I
Product Name: Aironet 3702I Wireless Access Point
Product Series: 3700
Product Type: Wireless Access Point
Interfaces/Ports
Audio Line Out: No
Ethernet Technology: Ethernet
Fast Ethernet
Gigabit Ethernet
HDMI: No
Management Port: Yes
Network (RJ-11): No
PoE (RJ-45) Port: No
Powerline: No
Serial Port: No
USB: No
VGA: No
Management & Protocols
Management: Radio Resource Management
Miscellaneous
Certifications & Standards: IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11h
  • 802.11d
  • 802.11i
  • 802.1x
  • 802.3af
  • 802.3at
Safety:
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155
Radio Approvals:
  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Physical Characteristics
Depth: 221 mm
Form Factor: Ceiling Mountable
Height: 53.6 mm
Weight (Approximate): 1.13 kg
Width: 221 mm
Power Description
Input Voltage: 110 V AC
220 V AC
Technical Information
Antenna Gain: 4 dBi
6 dBi
Antenna Type: Omnidirectional Antenna
Features: MIMO Technology
ISM Band: Yes
ISM Maximum Frequency: 2.46 GHz
ISM Minimum Frequency: 2.41 GHz
UNII Band: Yes
UNII Maximum Frequency: 5.83 GHz
UNII Minimum Frequency: 5.18 GHz
Wireless LAN Standard: IEEE 802.11ac
Wireless Security:
  • IEEE 802.1x
  • IEEE 802.11i
  • AES
  • TKIP
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS)
  • MSCHAPv2
  • EAP (PEAP) v0
  • EAP-MSCHAPv2
  • EAP-FAST
  • PEAP v1
  • EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)
  • WPA2
  • WPA
Wireless Transmission Speed: 450 Mbit/s
Warranty
Limited Warranty: Lifetime
