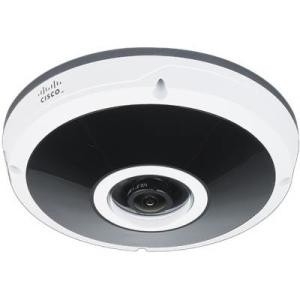

The Cisco^® Video Surveillance 7070 IP Camera is a high-definition HD), fully functioning video endpoint that is equipped with a 5-megapixel sensor and a fisheye lens that can deliver impressive 180° panoramic views and 360° surround views. This IP camera provides industry-leading image quality and processing power, and can be deployed in both indoor and outdoor environments.

The camera is capable of 1920 x 1920 resolution while optimizing network utilization with either H.264 or Motion JPEG (MJPEG) compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco IP Video Surveillance network.

Key Benefits

The Cisco Video Surveillance 7070 IP Camera offers a variety of benefits, including:

●   Outstanding multi-view layouts: 360° surround views and multiregion client dewarped views, with Digital PTZ functionality.

●   True high-definition video: This 5-megapixel camera streams crisp and clear video at resolutions up to 1920 x 1920, while maintaining low network bandwidth.

●   Indoor and outdoor-ready: An IK10 and IP66-rated enclosure enables outdoor mounting.

●   Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with independent resolution, quality, and frame-rate settings.

●   Application-ready platform: Device functionality can be extended by installing and running applications directly on the camera, for example SIP client, video analytics, audio analytics, etc.

●   Integrated infrared illuminator: The infrared illuminator can light an area up to 33 feet (10 meters) away.

●   Day and night operation: The camera provides true day-night functionality and includes an infrared-cut filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.

●   Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.

●   Local storage: Video data can automatically be recorded to a micro-Secure Digital (SD) card when the camera loses network connectivity.

●   Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.

●   Open API: Support for Open Network Video Interface Forum (ONVIF) 2.0 and Profile S allows for standards-based interoperability and communications with other ONVIF appliances.

●   Flexible power options: The camera supports Power over Ethernet plus (PoE+) (802.3at compliant) or 12V DC.
