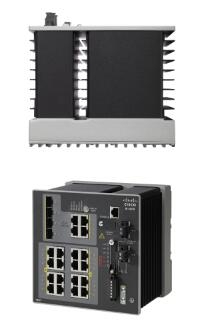

Cisco (ie-4000-16gt4g-e) Ie 4000 16 X Rj45 10/ 100/ 1000m, 4 X 1g Combo, Lan Base Ie-4000-16gt4g-e
SKU
260541
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$677.00
Buy Now And Earn 677 Reward Points!
Cisco Industrial Ethernet 4000 Series - Switch - Managed - 16 x 10/100/1000 + 4 x combo Gigabit SFP - DIN rail mountable - DC power
| Product Description | Cisco Industrial Ethernet 4000 Series - switch - 20 ports - Managed |
| Device Type | Switch - 20 ports - Managed |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 + 4 x combo Gigabit SFP |
| Capacity | Virtual interfaces (VLANs): 1000 � IGMP groups: 1000 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Static IPv4 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI |
| Features | NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP time synchronisation, Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613 |
| Power | DC 9.6 - 60 V 4.3 A |
| Dimensions (WxDxH) | 15.54 cm x 12.92 cm x 15.54 cm |
| Weight | 2.88 kg |
| Manufacturer Warranty | 5 years warranty |
| GENERAL | |
| Device Type | Switch - 20 ports - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 + 4 x combo Gigabit SFP |
| Capacity | Virtual interfaces (VLANs): 1000 IGMP groups: 1000 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Static IPv4 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP time synchronisation, Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 1613 |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| EXPANSION / CONNECTIVITY | |
| Interfaces | 16 x 1000Base-T RJ-45 4 x 1000Base-T RJ-45 uplink 4 x SFP uplink 1 x mini-USB Type B 1 x console RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
| POWER | |
| Voltage Required | DC 9.6 - 60 V |
| Electric Current Required | 4.3 A |
| Power Consumption Operational | 40 Watt |
| MISCELLANEOUS | |
| Included Accessories | 1 GB SD card |
| MTBF | 588,630 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
| TAA Compliant | Yes |
| SOFTWARE / SYSTEM REQUIREMENTS | |
| Software Included | Cisco IOS LAN Base |
| DIMENSIONS & WEIGHT | |
| Width | 15.54 cm |
| Depth | 12.92 cm |
| Height | 15.54 cm |
| Weight | 2.88 kg |
| MANUFACTURER WARRANTY | |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | -40 C |
| Max Operating Temperature | 75 C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 C |
| Max Storage Temperature | 85 C |
