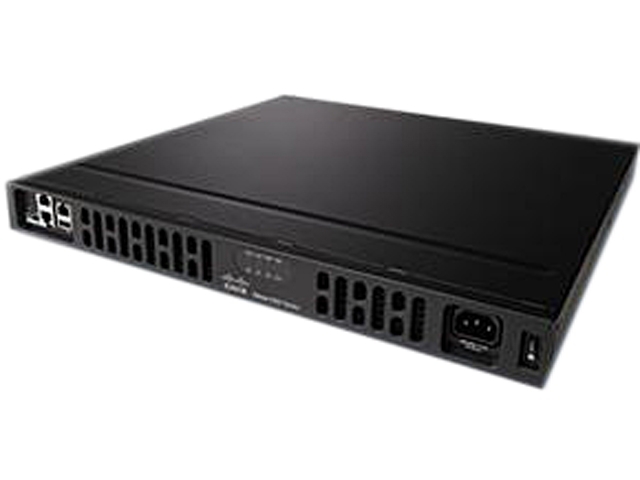

The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.


Brand
Cisco Small Business
Model
ISR4331-SEC/K9

Details
Protocols
IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, CNS, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah
Speed
10/100/1000Mbps
Security
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950-1
IEC 60950-1
GB-4943
LAN Ports
3 x 10/100/1000Mbps
Throughput
100 Mbps to 300 Mbps
Console Port
1 GE (Integrated Out of Band)
Temperature
Operating Conditions:
32 to 104ºF (0 to 40ºC) (altitude 0-10000 ft) (altitude 0-3000m)
32 to 95ºF (0 to 35ºC) (altitude 10000-15000ft) (altitude 3000m-4600m)

Nonoperating Conditions: -13 to 158ºF (-25 to 70ºC)
Humidity
Operating Conditions:
Relative humidity: 5% to 85%
Short-term humidity: 5% to 90%, not to exceed 0.024 kg water/kg of dry air

Nonoperating Conditions:
Relative humidity: 5% to 95%

Features
Features
Security (SEC) Feature: IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, FlexVPN

Dimensions & Weight
Dimensions
17.25" x 17.25" x 1.75"
Weight
14.6 lb (6.6 kg) Typical weight (fully loaded with modules)

Packaging
Package Contents
ISR 4331 with 3 onboard GE, 2 NIM slots, 1 ISC slot, 1 SM slots, 4 GB Flash Memory default, 4 GB DRAM default
