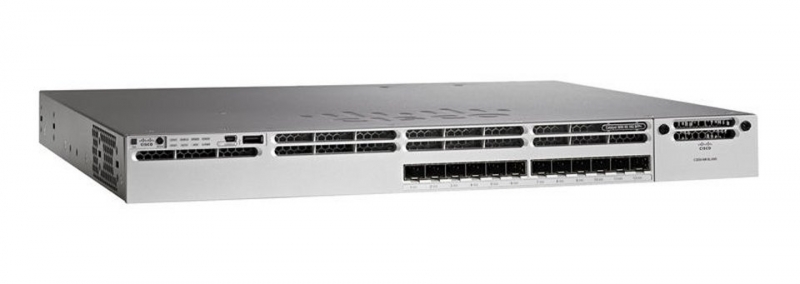

Cisco (ws-c3850-12xs-e) Ciscocatalyst 3850 12 Port 10g Fiber Switch Ip Services Ws-c3850-12xs-e

SKU
214067
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$4,470.00
Buy Now And Earn 4470 Reward Points!

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application- specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Product Name Catalyst 3850 12 Port 10G Fiber Switch Ip Service
Manufacturer Part Number WS-C3850-12XS-E
Product Line Catalyst
Product Series 3850
Product Model WS-C3850-12XS
Product Type Layer 3 Switch
Interfaces/Ports
Port / Expansion Slot Details 12 x 10 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots 12
Expansion Slot Type SFP+
Number of SFP+ Slots 12
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-X
Network & Communication
Layer Supported 3
Power Description
Power Source Power Supply
Redundant Power Supply Yes
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 17.7"
Warranty
Limited Warranty Lifetime
Miscellaneous
Package Contents
  • Catalyst WS-C3850-12XS Layer 3 Switch
  • 350WAC power supply
Green Compliant Yes
Green Compliance Certificate / Authority RoHS-5
Other Information
Product Family Catalyst 3850
PoE (RJ-45) Port Yes
Twisted Pair Cable Standard Category 5e
Token Ring Port No
LRE Port No
USB Yes
Management Port Yes
Number of PoE+ (RJ-45) Ports 24
Bypass No
Memory Technology DRAM
Certifications & Standards IEEE Standards:
  • 802.1w
  • 802.11
  • 802.1x
  • 802.1x-Rev
  • 802.3ad
  • 802.3af
  • 802.3at
  • 802.3x
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
  • 802.1s

Safety Certifications:

  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • GOST
  • NOM

Electromagnetic Emissions Certifications:

  • FCC Part 15 (CFR 47) Class A
  • ICES-003 Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • AS/NZS 3548 Class A
  • BSMI Class A (AC input models only)
  • VCCI Class A
  • EN 55024
  • EN300386
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • EN61000-4-6
  • EN 61000-6-1
MTBF 269450 Hour
Management
  • MIB
  • RMON I and II
  • SNMPv1, v2c, v3
  • QOS
  • VLAN
  • DHCP
Flash Memory 2 GB
Input Voltage 110 V AC

220 V AC

Standard Memory 4 GB
Stock Details
Manufacturer Cisco Systems
Manuf Part# WS-C3850-12XS-E
