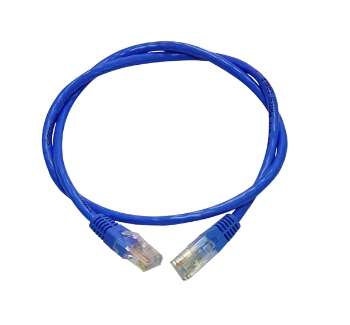

CLIPSAL PATCH LEAD, CAT5E, UTP, 2MTR, - BLUE RJ5/20PL-BU
SKU
236633
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
RJ5/20PL Patch Cord, 2m, Category 5E, UTP
The patch cord is constructed of high grade cable and quality RJ45 plugs. The RJ45 plugs are provided with a fully moulded boot and a moulded insert to ensure pair integrity. The fully moulded boot offers excellent strain relief, ensuring that performance is not degraded when using the patch cord
Edition 93 Trade Product Guide Page # 313
Key Features
- UL CMR fire rated jacket
- Strain relief boot
- Snag free design
- Pair count: 4 pair
- Sequence: Wiring sequences in 568A
- Durability: 1,000 mating cycles
- RJ45 plug: Polycarbonate, FCC part 68 subpart F, UL 94V-0
- Plug boot: PVC
- Contact material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel
- Dielectric strength: 100 V RMS at 60 Hz for 1 minute
- Voltage rating: 150 V AC
- Current rating: 1.5 A
- Insulation: 1 Mohm
- Contact resistance: 10 Mohm
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Actassi |
| Conductor material | |
| Diameter conductor | mm |
| Nominal cross section conductor | sq mm |
| AWG-size | |
| Conductor category | |
| Number of cores | 2 |
| Stranding element | Pairs |
| Core insulation | |
| Core identification | |
| Screen over stranding element | |
| Screen over stranding | |
| Material outer sheath | PVC |
| Colour outer sheath | |
| Halogen free (acc. EN 50267-2-2) | |
| Flame retardant | |
| Low smoke (acc. EN 61034-2) | |
| Outer diameter approx. | mm |
| Operating temperature, flexible | deg C |
| Operating temperature, fix | deg C |
| Category | 5E |
| Length | 2 m |
| Standard | AS/NZS 3080: 2003 Class D |
