• Input Signal: HDMI
• Output Signal: Component + Stereo Audio (YPbPr + L/R)
• Supported HDMI resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz
• Supported Component Video resolution: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz
• Video Bandwidth: 2.25Gbps/225MHz
• Vertical Frequency Range: 50/60Hz
• Operating Humidity: 10% to 85% RH
• Storage Humidity: 5% to 90% RH
• Power Supply: 5V DC
• Power Consumption(Max): 5W

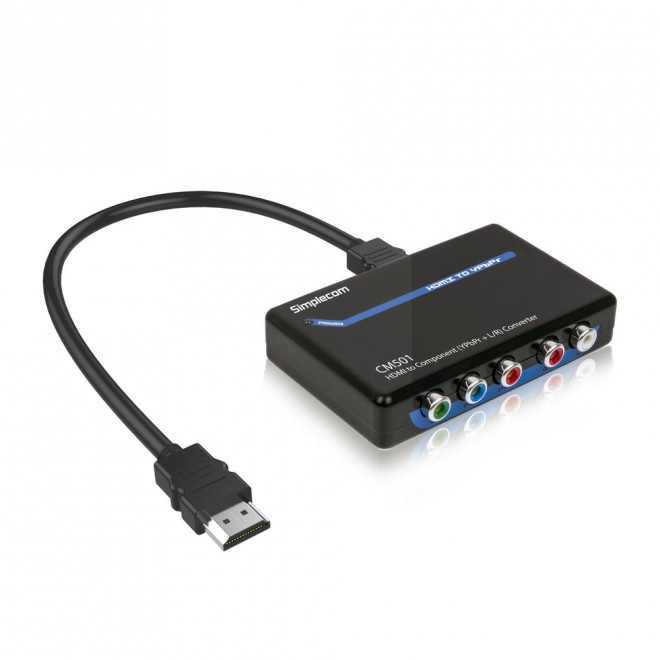

Simplecom CM501 HDMI to Component Video (YPbPr) and Audio (L/R) Converter

CM501 converts HDMI to Component Video (YPbPr) and stereo audio. It allows you to enjoy your high definition movies and games on the older component TV's or projectors that don't have an HDMI input. Also, you can easily connect your speaker system with separate component Video and Audio outputs.

Features

• Ease to Use, small size, Installs in seconds
• Support most HDMI video output resolution up to 1080p
• Resolution pass-through, converting video formats only, no conversion of video resolutions
• Audio format support 2 channel LPCM
• Compliant with HDMI 1.3 and HDCP 1.2
• Supports 225MHz/2.25Gbps per channel bandwidth for HDMI input
• Powered by USB, USB Power Cable and Wall Changer included
