(LS)Simplecom CM505v3 Component (YPbPr + Stereo R/l) To Hdmi Converter Full Hd 1080p CM505V3
SKU
415312
Brand
MPN
CM505V3
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$39.00
Buy Now And Earn 39 Reward Points!

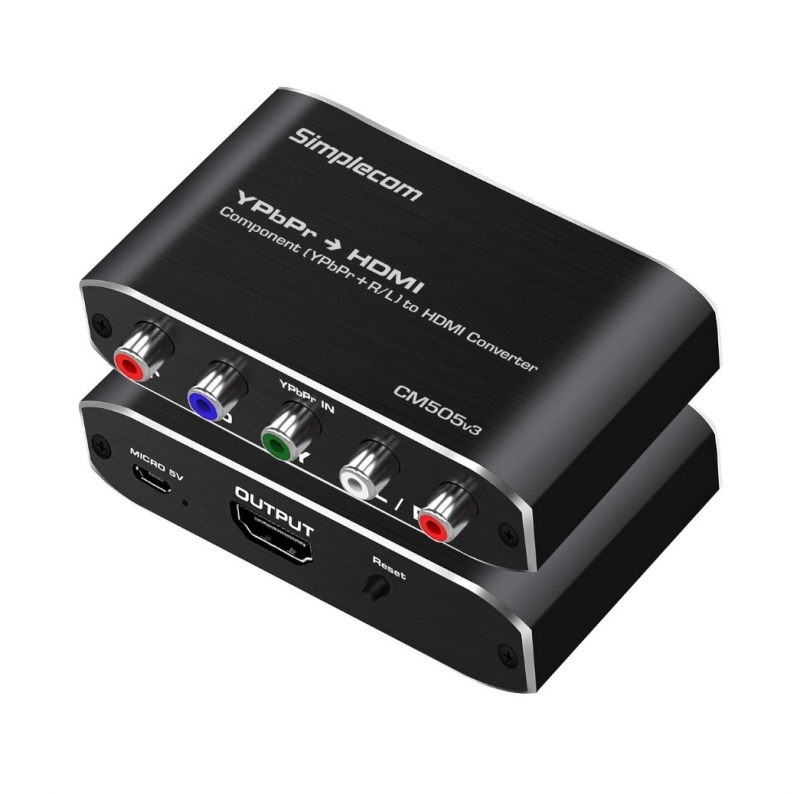

Simplecom CM505v3 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Supports video resolutions up to Full HD 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
Aluminium case for durability and excellent heat dissipation
Ideal for legacy component video devices such as STB, DVD players, game consoles
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Supports video resolutions up to Full HD 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
Aluminium case for durability and excellent heat dissipation
Ideal for legacy component video devices such as STB, DVD players, game consoles
| Model: CM505v3 | Input: Component (YPbPr) + R/L Stereo |
| Output: HDMI | Case Material: Aluminium |
| Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel | Vertical Frequency Range: 50/60Hz |
| Interlaced Resolutions (50&60Hz): 480i, 576i, 1080i | Progressive Resolutions (50&60Hz): 480p, 576p, 720p, 1080p |
| Operating Temperature: 0°C to 70°C | Operating Humidity: 10% to 85% RH |
| Storage Temperature: -10°C to +80°C | Storage Humidity: 5% to 90% RH |
| Power Input: USB 5V1A | Power consumption (MAX): 5W |
| Package Contents | 1x Component to HDMI converter |
| 1x HDMI Cable | 1x USB Power cable |
| 1x USB Wall Adapter | Important Note |
| The converter only works in one direction, from Component to HDMI, and cannot be used in reverse | This adapter only converts video format from component to HDMI and does not upscale the resolution. The display screen must support the same resolution as the input source. (e.g. if the component input is 1080i, the HDMI output is also 1080i) |
CBSI-CM505V3
