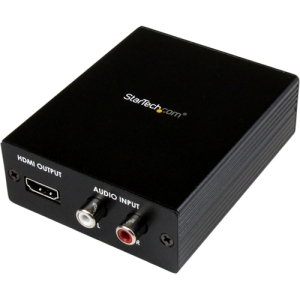

Startech Component (ypbpr) / Vga To Hdmi Converter With Audio - Pc To Hdmi - Resolutions Up To
QUICK OVERVIEW
The converter helps reduce equipment costs by eliminating the need to upgrade individual analog components, by offering a solution that converts an analog video source (RGB/YPbPr) for use with a digital HDMI® display.
This versatile analog-digital converter not only supports resolutions up to 1920x1200 including high-definition 1080p, but also enables you to convert and combine an analog RCA audio source into its digital HDMI® output signal.
The VGA2HD2 Component/VGA to HDMI converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.Connect your VGA or Component video source to an HDMI® display. The VGA2HD2 Component/VGA to HDMI® Video Converter offers seamless conversion from an analog VGA or Component video source, such as a Computer, DVR, or DVD player, to a digital HDMI® output.
The converter helps reduce equipment costs by eliminating the need to upgrade individual analog components, by offering a solution that converts an analog video source (RGB/YPbPr) for use with a digital HDMI® display.
This versatile analog-digital converter not only supports resolutions up to 1920x1200 including high-definition 1080p, but also enables you to convert and combine an analog RCA audio source into its digital HDMI® output signal.
The VGA2HD2 Component/VGA to HDMI converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Product Name | Component/VGA Video & Audio to HDMI Converter PC to HDMI 1920x1200 |
| Manufacturer Part Number | VGA2HD2 |
| Packaged Quantity | 1 |
| Product Type | Signal Converter |
| Technical Information | |
| Functions | Signal Conversion |
| Maximum Resolution | 1920 x 1200 |
| Platform Supported | PC |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Audio Line In | Yes |
| Physical Characteristics | |
| Height | 3.6" |
| Width | 3" |
| Depth | 1.2" |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Green Compliant | Yes |
| Green Compliance Certificate / Authority | RoHS |
| Other Information | |
| Analog Signal | Yes |
| Digital Signal | Yes |
| Number of HDMI Outputs | 1 |
| Color | Black |
| Certifications & Standards |
|
| Stock Details | |
| Manufacturer | StarTech.com |
| Manuf Part# | VGA2HD2 |
| Performance | |
| Supported Resolutions | Maximum of 1080p for HD Input, and 1920x1200 for PC input |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 30 mm [1.2 in] |
| Product Length | 110 mm [4.3 in] |
| Product Weight | 190 g [6.7 oz] |
| Product Width | 78 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.3A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.2A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 6 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| System and Cable Requirements | HDMI? M/M Cable (Destination) VGA M/M Cable (If using VGA as source) |
| What's in the Box | |
| Included in Package | PC/HD to HDMI Converter with Audio |
| Universal Power Adapter (US/UK/EU/AUS) | |
| VGA to Component (RCA) Breakout Cable | |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.2 lb] |
| Hardware | |
| Output Signal | HDMI |
| Converter Type | Format Converter |
| Audio | Yes |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -20?C to 60?C (4?F to 140?F) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 20~90% RH |
| Connector(s) | |
| Connector B | HDMI (19 pin) Female Output |
| Connector A | VGA (15 pin, High Density D-Sub) Female Input |
| Stereo Audio (2 x RCA) Female Input | |
| Component Video (3 x RCA) Male Input | |
The VGA2HD2 Component/VGA to HDMI® Video Converter offers seamless conversion from an analog VGA or Component video source, such as a Computer, DVR, or DVD player, to a digital HDMI® output.
The converter helps reduce equipment costs by eliminating the need to upgrade individual analog components, by offering a solution that converts an analog video source (RGB/YPbPr) for use with a digital HDMI® display.
This versatile analog-digital converter not only supports resolutions up to 1920x1200 including high-definition 1080p, but also enables you to convert and combine an analog RCA audio source into its digital HDMI® output signal.
The VGA2HD2 Component/VGA to HDMI converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
