Coolermaster Masterbox Mb530P Atx Tempered Glass Panels 3X120Mm Rgb Fans Mcb-B530P-Khnn-S01

SKU
274111
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

SHOWROOM READY.

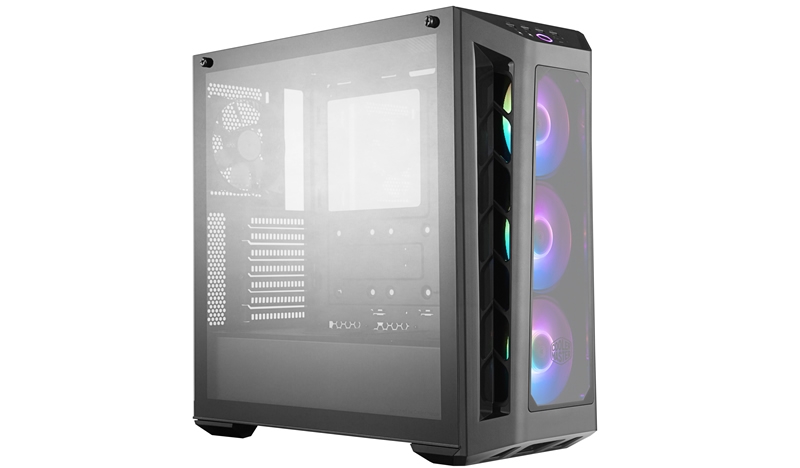

MASTERBOX MB530P

  • 3 Tempered Glass Panels
  • Aggressive Intakes
  • Addressable RGB Fans with Lighting Control
  • Support for a Total of 6 Fans and Water Cooling
  • Graphics Card Support Up to 410mm
  • Cable Cover and Routing Space


3 TEMPERED GLASS PANELS

The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.



AGGRESSIVE INTAKES

Large intakes on each side of the front panel feed air to cool the interior.



ADDRESSABLE RGB LIGHTING

Sync the addressable RGB lighting on the power button and fans by connecting the ARGB cable from the I/O panel to the included 2 to 3 ARGB splitter. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards for a comprehensive lighting system.



FAN AND RADIATOR SUPPORT

Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.

*2 x 140mm fans in front can only be mounted behind the front plate



CABLE COVER AND ROUTING SPACE

A PSU shroud1, cable cover2, and 18~25mm width of space3 behind the motherboard provides options to keep systems clean;
GFX cables can also be routed directly through the PSU shroud rubber grommet4



EXPANDING THE POSSIBILITIES

The spacious interior fits all standard motherboards for your gaming needs.

ATX

MICRO-ATX

MINI-ITX

MAIN COMPONENTS CLEARANCE

The MasterBox MB530P case supports CPU coolers up to a height of 165mm, graphics cards up to a length of 410mm, and power supplies up to a length of 180mm.

Specifications
Product Name MasterBox MB530P
Model number MCB-B530P-KHNN-S01
Available Color Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 489 x 229 x 469mm
Motherboard Support ATX, Micro-ATX, Mini-ITX
Expansion Slots 7
5.25" Drive Bays N/A
3.5" Drive Bays 2
2.5" Drive Bays 4
I/O Panel USB 3.0 x 2, USB2.0 x2,Audio In / Out, ARGB control button
ARGB Controller ARGB Controller included
ARGB Cable 2 to 3 ARGB Splitter cable included
Pre-installed Fan(s) Front: 120mm ARGB AB fans x 3 (9 blades fan 1200rpm)
Rear: 120mm Non-Led fan x 1 (7 blades fan 1200rpm)
Fan Support Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate)
Top: 120mm x 2 / 140mm x 2
Rear: 120mm x 1

Radiator Support Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm
Rear: 120mm

Clearances CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08"
Graphics card: 410mm / 16.14"

Cable Routing Behind M/B Tray space: 18-25mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
EAN Code 4719512074640
UPC Code 884102047138
