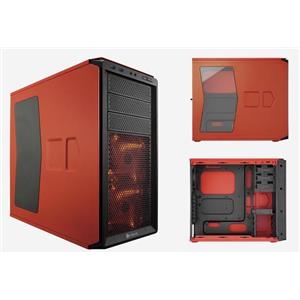

Graphite Series 230T Windowed Compact Mid-Tower Case Rebel Orange

Warranty

Two years

Weight

6.05kg

Color

Rebel Orange

Case Form Factor

Mid-Tower

Dimensions

505mm x 210mm x 440mm

Case Motherboard Support

Mini-ITX, MicroATX, ATX

Maximum GPU Length

360mm

Maximum CPU Cooler Height

165mm

Maximum PSU Length

200mm

Case Expansion Slots

7

Case Drive Bays

(x3) 5.25in
(x4) 3.5in
(x4) 2.5in

Case Material

Steel

Case Power Supply

ATX (not included)

External Connections

(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations

Front: (x2) 120mm
Top: (x2) 120/140mm
Rear: (x1) 120mm
Bottom: (x1) 120/140mm

Fans Included

Front: (x2) 120mm
Rear: (x1) 120mm

Radiator Mount Locations

Top: 240/280mm
Rear: 120mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i

Fast and straightforward system building, by design.

At Corsair, we believe that no matter your budget, building your own PC should be easy, and have great looking results. Choose the Graphite Series 230T, and the only time you’ll need a screwdriver is for attaching the motherboard. Your own custom-built PC will have a look that’s aggressive, yet refined, with up-front USB 3.0 and headset connectors for quick access. Add to that dual front intake LED fans for great cooling potential.

Whether you’re building a gaming PC or just a replacement for a boring office-grade box, you can enjoy the unique pride of ownership that comes from a great-looking system that you’ve built yourself.

Leading-edge styling

Graphite Series cases meet at the intersection of high performance and dramatic design. The front intake fans are bathed in soft LED light, and the sculpted exterior helps you build a fast system that looks fast, too.

Flexible cooling potential

The 230T comes with dual 120mm front intake fans with LED lighting, and a rear 120mm exhaust fan. There’s room to add two 120mm or 140mm fans on the top, and a 120mm or 140mm fan on the bottom.

Easy system builds, maintenance and upgrades

The side panels, PCI-E expansion slots, and drive bays are all tool-free. Cable routing cutouts are provided for clean-looking builds and better airflow, and there’s a CPU cutout to allow for cooling upgrades without removing the motherboard. The intake fan filters help keep dust out of the interior, and they’re easy to remove for cleaning.

Dedicated SSD bays

The 230T offers four 2.5” drive bays for solid-state storage. That’s in addition to the four 3.5” bays and three 5.25” optical drive bays.

Seven PCI-E expansion slots

There’s room for multi-GPU setups for powerful gaming systems. The slots are tool-free, so swaps and upgrades are quicker.

Contents and Specifications

Package contents

·         Graphite Series 230T Compact Mid Tower Case

·         Quick Start Guide

·         Accessories box with screws, zip ties, and other mounting hardware.

Compatibility

·         Mini ITX, Micro ATX, ATX motherboards

Technical specifications

·         Dual 120mm front LED fans and rear 120mm exhaust fan.

·         USB 3.0 front panel

·         Tool-free SSD, HDD, and ODD installation

·         Cable routing and CPU cooler backplate motherboard cutouts

·         Seven PCIe slots with thumbscrews and room for GPUs 320mm long

·         Install up to four 3.5” and four 2.5” drives simultaneously – tool free

·         Up to six fan mounts for optimal cooling potential

·         Dust filters for front and PSU intake

·         Room for up to 200mm ATX PSU (not included)
