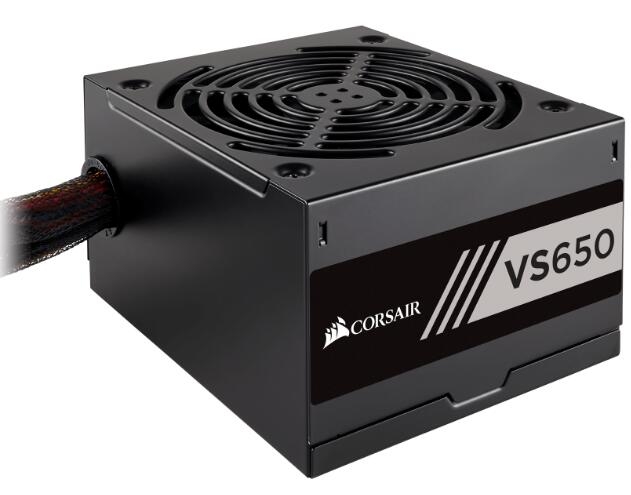

Corsair 650w Vs Series V2 Vs650 Active Pfc 80 Plus White Certified Power Supply Cp-9020172-au
SKU
260786
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$105.00
Buy Now And Earn 105 Reward Points!
EFFICIENT POWER, RELIABLY DELIVERED
The CORSAIR VS650 delivers stable 80 PLUS efficiency power at an affordable price from the world’s most trusted name in PC power supplies.
Real power
The VS650 delivers a guaranteed 650 Watts of continuous power. With universal input the power supply includes circuitry with components that can tolerate a wide range of mains voltage support (100-240 VAC). Multiple power protection circuits provide for added peace of mind. A dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables.
Designed with builders in mind
Black cables, cable sleeving and connectors make it easy to build a great looking PC, while a super-compact 125mm deep housing fits in almost any modern PC case for maximum compatibility.
Low noise, high efficiency
The 120mm fan is thermally controlled, so it only spins up when needed, and is quiet even at full load. The VS650 is 80 PLUS rated for greater efficiency, so it generates less heat, and you’ll enjoy lower energy bills.
Reliability you can count on
The VS650 is backed with a comprehensive three-year warranty including legendary CORSAIR technical support and customer service.
Contents and Specifications
Package contents
- VS Series 80 PLUS White Certified PSU
- Power Cord
- Mounting Screws
- Warranty Document
Compatibility
- Compatible with the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and older systems
Specifications
- Active PFC with full range AC input (100-240 VAC)
- 120mm thermally controlled sleeve bearing fan
- Engineered to meet maximum power output at a 30°C temperature rating.
- Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
- Safety and Agency Approvals: FCC, cTUVus, TUV, CCC, BSMI, CE, CB, TUV-S, EAC, RCM, KC, Reach, WEEE and RoHS
The CORSAIR VS Series V2 combines stable 80 PLUS efficiency power and an affordable price from the world’s most trusted name in PC power supplies. Black cables, cable sleeves and connectors make it easy to build a great looking PC, while it’s super-compact 125mm deep housing fits in almost any modern PC case for maximum compatibility. With a large 120mm fan that’s tuned for quiet operation across a wide range of loads and a 3-year warranty for total piece of mind, the CORSAIR VS Series is the essential PSU for PC builders, enthusiasts and gamers.
• Active PFC with full range AC input (100-240 VAC)
• 120mm thermally controlled sleeve bearing fan
• Engineered to meet maximum power output at a 30°C temperature rating.
• Compatible with the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and older systems.
• Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
• Safety and Agency Approvals: FCC, cTUVus, TUV, CCC, BSMI, CE, CB, TUV-S, EAC, RCM, KC, Reach, WEEE and RoHS
Warranty Three years
MTBF 100,000 hours
80 Plus White
Power 650 Watts
Fanless mode No
Fan bearing technology Sleeve
Fan size (mm) 120
C-Link Digital No
Continuous output rated temperature (°C) 40°C
Dimensions 150mm x 86mm x 140mm
Modular No
Sleeved cables Sleeved
ATX Connector 1
EPS Connector 1
Floppy Connector 2
Four Pin Peripheral Connector 4
PCIe Connector 2
SATA Connector 4
Plug Type NA
