Carbide Series® Air 240 Arctic White High Airflow MicroATX and Mini-ITX PC Case

Warranty

Two years

Weight

5.6kg

Color

Arctic White

Case Form Factor

MicroATX

Dimensions

397mm x 260mm x 320mm

Case Motherboard Support

Mini-ITX, MicroATX

Maximum GPU Length

290mm

Maximum CPU Cooler Height

120mm

Maximum PSU Length

240mm

Case Expansion Slots

4

Case Drive Bays

(x3) 3.5in
(x3) 2.5in

Case Material

Steel

Case Power Supply

ATX (not included)

External Connections

(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations

Front: (x2) 120mm
Top: (x2) 120mm
Rear: (x2) 80mm
Bottom: (x2) 120mm
Side: (x1) 120mm

Fans Included

Front: (x2) 120mm
Rear: (x1) 120mm

Radiator Mount Locations

Front: 240mm
Bottom: 240mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i, H100i, H105

A compact PC case made for maximum cooling.

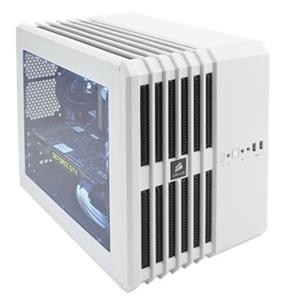

Meet the Carbide Series Air 240 – an extraordinary small form factor PC case for Mini-ITX and MicroATX computers.

The eye-catching cube design -- complete with a full side window -- hosts an internal layout optimized for maximum airflow or advanced water-cooling configurations (including a 240mm radiator or two).

Don’t let the compact size full you – this little one handles full size components while still offering roomy installation space.

Direct Airflow path cooling

The unusual interior design is optimized to allow the intake fans to deliver cool air directly to your components that generate the most heat.

Mini-ITX and MicroATX support in a compact size

Although it’s the same size as many Mini-ITX cases, the Air 240 supports MicroATX motherboards. This gives you the option of installing dual GPUs.

Easy installation and upgrades

Tool-free 3.5” drive, 2.5” drive, and side panel removal means that builds and upgrades can be performed without reaching for a screwdriver. The CPU backplate cutout allows you to upgrade your CPU cooler without taking out the motherboard.

Outstanding liquid cooling radiator support

The Air 240 has pre-spaced holes for 240mm radiators on the top, bottom, and front. If you’re using a Mini-ITX motherboard, you can add both front and bottom 240mm radiators. If you’re using a MicroATX motherboard with dual GPUs, you can install a front 240mm radiator.

Flexible installation

The flexibility goes beyond dual Mini-ITX and MicroATX compatibility. The included rubber feet can be placed on any of three surfaces, so you can customize the orientation of the chassis: as a standard tower, an inverted tower, or as a desktop.

Full side panel window

The panoramic window allows you to admire your work.

Build a clean, uncluttered system

The Air 240 has cable routing holes with grommets and tie-downs, with dedicated cable housing space behind the motherboard tray. It’s easy to move your cables out of the way and out of the airflow path.

Front panel USB 3.0 ports

Up-front connectors make it easy to attach USB flash drives, portable hard drives, and USB headsets.

Contents and Specifications

Package contents

·         Carbide Series Air 240 High Airflow MicroATX and Mini-ITX PC Case

·         Accessory kit

·         Quick Start Guide

Compatibility

·         Mini-ITX and MicroATX compatible

Technical specifications

·         Maximum GPU Length: 290mm

·         Maximum CPU Cooler Height: 120mm

·         Maximum PSU Length: 225mm

·         Radiator Mount Locations:

·         Front: 240mm

·         Bottom: 240mm (mITX only)

·         Fan Mount Locations:

·         Front: 2 x 120mm

·         Top: 2 x 120mm

·         Bottom: 2 x 120mm

·         Rear: 2 x 80mm

·         Side: 1 x 120mm
