Corsair Commander Pro Digital Fan Hub And Rgb Lighting Controller. 2 Years Warranty Cl-9011110-ww

SKU
248509
Brand
Corsair
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$105.00
Buy Now And Earn 105 Reward Points!
Add to Compare

　

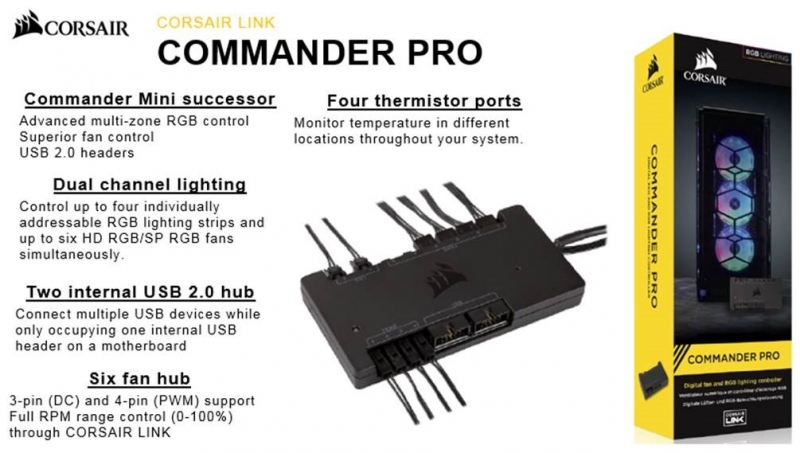

The compact heart of your CORSAIR LINK system

The CORSAIR Commander PRO grants superior and accurate hardware control with a compact, all-in-one device. Fully compatible with CORSAIR LINK devices, it supports up to six fan connectors, four temperature inputs, two RGB LED channels and multiple USB devices through two internal USB 2.0 headers.

　
　

　
Absolute command of your system

Accurately monitor how your system reacts when you push it to the limits. Manage your fans without pressing knobs or switches through the intuitive CORSAIR LINK software.

　

Six 4-pin fan ports with voltage and PWM control

Control 3-pin and 4-pin fans with ease from a complete stop to max speed.



CORSAIR LINK software support

Manage and control the devices connected to the Commander PRO through our intuitive CORSAIR LINK software.



Two USB 2.0 internal headers

Connect your CORSAIR LINK devices while only occupying one USB 2.0 header on your motherboard.

Four thermistor inputs

Monitor temperature in different locations throughout your system.



Dual channel lighting

Conduct a symphony of RGB lighting with individually addressable RGB LED strips (sold separately) and unleash the full RGB potential of the HD RGB and SP RGB fans (sold separately).



Low profile design

Slim form factor allows installation nearly anywhere in your case.

　

　
A Symphony of Color

Synchronize your RGB lighting effects with HD RGB fans, SP RGB fans and individually addressable RGB LED strips to light up your build.

　

　
Contents and Specifications

Package contents

  • x1 Commander PRO
  • x2 RGB LED hub cables
  • x4 Thermal sensors
  • x4 Fan extension cables
  • x2 Mounting tape
  • x1 Installation guide

Compatibility

  • Windows 10, Windows 8, Windows 7
  • Requires a motherboard with an internal USB 2.0 header
  • Requires CORSAIR LINK software version 4.7 or higher
　

Package contents

  • x1 Commander PRO
  • x2 RGB LED hub cables
  • x4 Thermal sensors
  • x4 Fan extension cables
  • x2 Mounting tape
  • x1 Installation guide

Compatibility

  • Windows 10, Windows 8, Windows 7
  • Requires a motherboard with an internal USB 2.0 header
  • Requires CORSAIR LINK software version 4.7 or higher
　

Specifications

  • Power input:
    • Logic: 2.97V to 3.63V, 4.5V to 5.5V
    • Fan: 11.4V to 12.6V
    • RGB LED: 4.5V to 5.5V
  • Cable:
    • USB: 440mm
    • SATA Power: 465mm
    • Thermal sensor: 610mm
    • Fan extension: 300mm



  • Dimensions: 133mm x 69mm x 15.5mm
  • RGB LED channels: Two 3-pin connector
  • Max. RGB LED strip per channel: 4
  • Max. RGB fan per channel: 6 through 1 RGB LED hub
The CORSAIR Commander PRO grants superior and accurate hardware control with a compact, all-in-one device. It is fully compatible with CORSAIR LINK devices and supports up to six fan connectors, two internal USB 2.0 headers, four temperature inputs, and two RGB LED channels. Accurately monitor how your system reacts when you push it to its limits. Manage your fans without pressing knobs or switches through the intuitive CORSAIR LINK software. Synchronize your RGB lighting effects with the HD RGB fans, SP RGB fans and individually addressable RGB LED strips to light up your build.

6x Fan Hub
2x Internal USB 2.0 hub
4x Thermistor ports
Dual Channel RGB Lghtning
