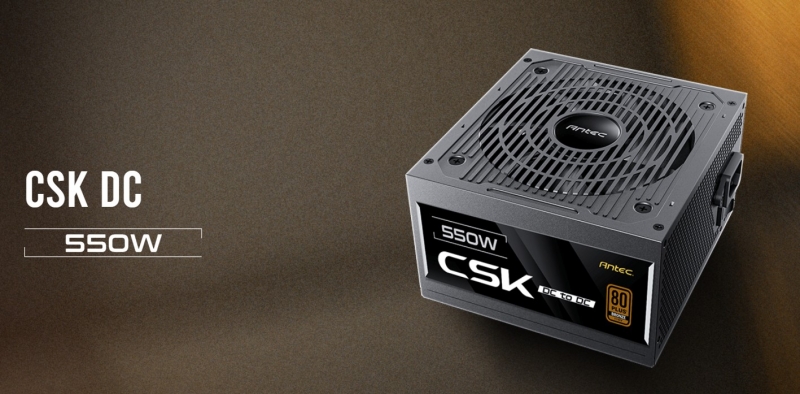

Antec’s new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK DC series includes Antec’s solid 5-year warranty. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment.

Model CSK550DC
Safe Model X5000A533XC-24
Type ATX 12V 2.52
Dimension 140(L)*150(W)*86(H)
Modular Non-Modular
Warranty 5 years
Input Voltage 100V-240V
Input Current 12A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-500ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 550W
Operation Temperature 0~40°C
Regulatory cTUVus / TUV / CB / RCM / CE / FCC
/ BSMI / KC / UKCA / ICES/BIS
Fan 120mm Silent Fan
Certifications 80 Plus Bronze
Connector 1 x 24(20+4)pin MB
2 x 8(4+4)pin CPU
2 x 8(6+2)pin PCI-E
6 x SATA
3 x Molex
Unit Box Dimensions 255mm(L)*195mm(W)*100mm(H)
Shipping Box Dimensions 545mm(L)*425mm(W)*230mm(H)
Net Weight 1.60KG
Gross Weight 1.90KG
